100HP 130HP 180HP Crawler Tractor

Product Description

Overall Dimensions(LxWxH) mm	4360×2462×2766
Service Mass(with dozer blade) kg	6890
Track (mm)	1435
Track shoe width (mm)	390/530
Diesel Engine Model	LR6B5-22
Rated Power(kW)	66.18
Rated Sspeed (r/min)	2200
Theoretical Speed / Tractive Force	km/h/kN
Forward Gears	Gear/Speed
Gear- I	3.18/49.31
Gear- II	4.07/46.30
Gear- III	6.62/26.13
GearIV	9.63/16.11
Reverse Gears
Gear - I	4.10
Gear - II	6.35
Dozer Blade
Type	Fixed Straight Blade
HxW (mm)	850×2462
Depth Into Soil (mm)	290
Lifting Height (mm)	625

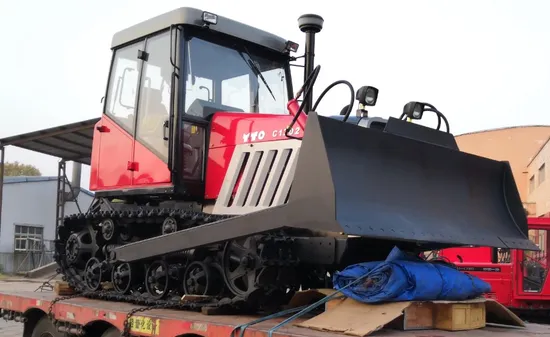

90HP crawler tractors. This type of tractor is based on C902 tractor; however, it is more suitable for bulldozing operations due to its adoption of(4F+2R)sliding gear transmission. Quality built and economically priced, our crawler tractor is widely used for irrigation, pond renovation, small town construction and so on.
Main Features : 1) it is mainly used for ploughing, plowing, raking, sowing, loosening and duplex operations in reclamation areas, farms and large grain producers.
2) adopt LR6A3L-22 diesel engine to start up good performance, save energy and reduce consumption.
3) (3+1) * 4 composition meshing sleeve shift gearbox, wet steering clutch rear axle, with wide scope of operation and high reliability;
4) the torsion bar shock absorption walking system has strong bearing capacity and good damping effect.
5) electric control independent power output, easy to operate;
6) load sensitive hydraulic system with precise control and low energy consumption. The electrically controlled suspension system has the functions of force adjustment, bit adjustment and force position comprehensive adjustment, and is easy to use.
7) brand new cab with beautiful appearance and air conditioning.
The C1802E rubber tracked tractor is mainly based on large area farm operations, and can be equipped with different farm implements for farming, finishing, raking and sowing. The 6K series diesel engine has good starting performance, energy saving and consumption reduction. The use of (3+1) * 4 composition meshing sleeve shift gearbox, wet steering clutch rear axle, wide scope of operation and high reliability.

Specification
Overall dimensions L*W*H mm	3200*2380*3149
Operating weight kg	9800
Track gauge mm	1580
Wheel base mm	1850
Track width (mm)	500
Ground pressure (kPa)	50
Diesel Engine type	YM6K5LRF22/1330
Rated power output (kW)	133
Rated speed (r/min)	2200
Minimum fuel consumption rate (g/ kW.h)	≤225
Oil consumption rate (g/ kW.h)	≤0.68
Torque reserve	20%~30%
Hydraulic suspension structure type	Articulated lever type
Maximum hoisting force of suspension shaft (kN)	37

Model	C1302 Crawler Tractor
Overall dimensions(L*W*H)mm
Without dozer blade	5344*1835*2786
With dozer blade	5367*2462*2786
Wheel Base (mm)	2774
Track(mm)	1435
Track shoe with (mm)	390
Serving mass (kg)
Without dozer blade	7300
With dozer blade	7550
Ground Pressure (kPa)
Without dozer blade	46.75
With dozer blade	48.35
Speed, tractive force, forward gears(6F+2Rengagement sleeve transmission)
Gear I (km/h)/ tractive force (kN)		3.71/52.9
Gear II (km/h)/ tractive force (kN)		6.6859/32.5
Gear III (km/h)/ tractive force (kN)		7.798/32.2
Gear IV (km/h)/ tractive force (kN)		8.996/27
Gear V (km/h)/ tractive force (kN)		10.591/22
Gear VI (km/h)/ tractive force (kN)		13.917/14.3
Reverse speed gear I (km/h)		3.314
Reverse speed gear II (km/h)		6.289
Diesel engine model		LR6A3Z-22 diesel engine
Rated power (Kw)		95.6
Rated speed (r/min)		2200
Dozer blade		Fixed straight blade
H*W (mm)		850*2462
Depth into soil (mm)		>290
Max. Lifting height (mm)		>625
