Cap Injection Machine for 5L, 10L Water Bottles
| US$32,000.00-35,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GM-1320
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Plunger Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Transport Package
Film
Specification
1320
Trademark
GM
Origin
China
HS Code
8477101090
Production Capacity
30sets/Year
Product Description
Product DescriptionInjection Machine are widely applied to various manufacturing areas such as industrial plastic products,daily necessities,packaging industry,electronic products,ect.YJPT type is especially used for making PET preform,greatly raise the working efficiency of manufacturing machines and obviously imporove the quality of products.
Detailed Photos

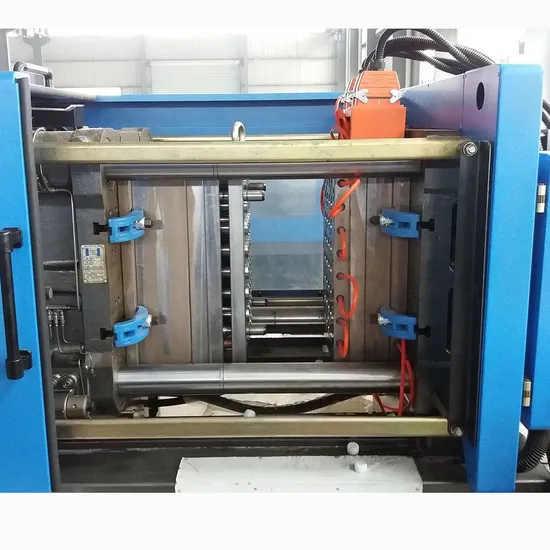

cap injection machine for 5L,10L water bottles
Product Parameters
| Injection Molding machine | GM-1320A | 1Set |
| Hopper Dryer | 50Kg | 1unit |
| Hopper Dryer | 200Kg | 1unit |
| Auto loader | 350KG/HR | 2units |
| Water Chiller | 5HP | 1unit |
| Crusher | PC-300 | 1unit |
| Molds | 45mm,4cav | 1unit |
main parameters:
| MODEL/ | GM-1320 | ||
| INJECTION UNIT/ | A | B | |
| Screw diameter/ | mm | 38 | 40 |
| Shot size(theoretical)/ | Cm³ | 210 | 228 |
| Shot weight/ | g | 188 | 205 |
| Injection pressure/ | Mpa | 176 | 160 |
| Injection rate/ | g/s | 95 | 100 |
| Screw L/D ratio/ | L/D | 22.8 | 21.7 |
| Screw speed/ | r.p.m | 0-190 | |
| Nozzle Diameter/ | Srmm | 10 | |
| CLAMPING/ | |||
| Clamp tonnage/ | KN | 1320 | |
| Toggle stroke/ | mm | 350 | |
| Mould Thickness/ | mm | 150-420 | |
| Space between tie-bars/ | mm | 410X375 | |
| Ejector stroke/ | mm | 135 | |
| Ejector tonnage/ | KN | 50 | |
| Ejector number/ | Piece | 5 | |
| Hole Diameter/ | mm | 100 | |
| OTHERS/ | |||
| Heat power/ | KW | 8.2 | |
| Max. pump pressure/ | MPa | 16 | |
| Pump motor power/ | KW | 13 | |
| Valve Size/ | mm | 10 | |
| Machine dimension/ | m | 4.5X1.6X1.7 | |
| Machine weight/() | t | 3.9 | |
| Oil tank capacity() | L | 200 | |
Assistant machinery
Hopper Dryer
| Model | Diameter(mm) | Extemal size | Capacity(kg) | Heater Power(kw) |
| 50kg | 430mm | 840X540X1030mm | 50kg | 4.8 |
| 200kg | 700mm | 1250X850X1480mm | 200kg | 10 |
3)Auto loader
| Model | 350kg | ||
| Motorl | Type | Carbon Brush | |
| Specification | 1100W | ||
| Converying capacity | 350kg/hr | ||
| Static wind pressure (MAX) | 1500mmAq | ||
| Filter | 185mmX90H | ||
| Volume of Material Hopper | 6L | ||
| Inside Diameter of conveying Pipe | 38mm | ||
| External size | Main Body L W H | 480x310x430mm | |
| Material Hopper L W H | 430x440x295mm | ||
| weight | Main Body L W H | 15.5kg | |
| Material Hopper L W H | 5kg | ||
4) Chiller air
| Specifications | 5HP | |
| Coiling capacity | Kacl/h | 12040 |
| Compressor | ALL-closed Vorticity | |
| Compressor power | kw | 4.4 |
| Refrigerant | R22 | |
| Chilled water pump power | kw | 0.75 |
| Max flow rate of chilled water | L/min | 120 |
| Max pressure | M | 9 |
| Flow water inlet and outlet pipe | 1" | |
| Cooling fan power | Kw | 0.5 |
| Size length | MM | 1100 |
| Size width | MM | 700 |
| Size height | MM | 1400 |
| Water tank capa | L | 88 |
| Weight | Kg | 290 |
5) Crusher
| MODEL | PC-300 |
| Power KW | 5.5 |
| Quantity of rotating blades | 9 |
| Quantity of fixed blades | 2 |
| Rotate speed r/min | 800 |
| Screen size MM | 10 |
| Weight KG | 480 |
| Max breaking capacity KG | 200-300 |
| Size of feeding inlet mm | 300x210 |
| External size mm | 1100x800x1200 |
