Aluminum Doors Window Mullion End Milling Machine

Aluminum Doors Window Mullion End Milling Machine

US$1,260.00
1-2 set
US$1,200.00
3+ set

Basic Info.

Model NO.
LDX-200
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Product Name
Aluminium and PVC Window Door End Milling Machine
Transport Package
Plywood Case
Origin
Shandong, China
HS Code
84778000
Production Capacity
60sets/Month

Product Description

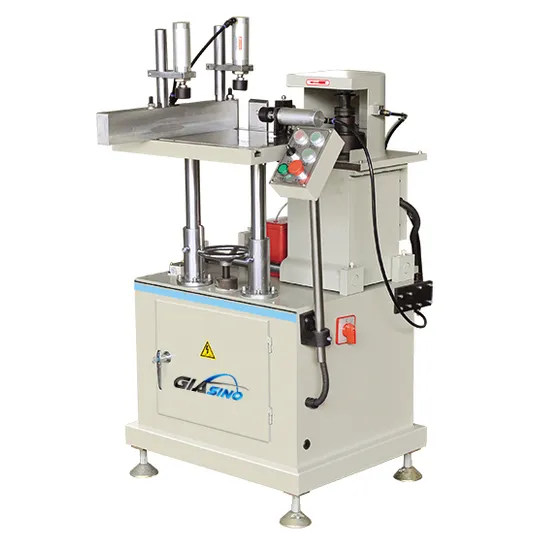

Aluminum Doors Window Mullion End Milling Machine
Equipment Features for Aluminum Doors Window Mullion End Milling Machine
Glasino aluminum corner combining machine is used for processing aluminium profile end step face and end slot etc.
1. Can work for several profiles at one time.
2. Super precision main shaft insured accurate and steady processing.
3. Adjustable processing angle within 30°- 90°.
4. Convenient tool setting due to adjustable worktable.
5. Tool main shaft is connected by shaft coupling, thus the motor main shaft rotating accuracy can not affect the tool's working accuracy.
6. Tool feeding adopted linear bearing motion pair, which insured steady process.
Details of Aluminum Doors Window Mullion End Milling Machine
Working samples of Aluminum Doors Window Mullion End Milling Machine:
Technical Parameter
Motor Power:
1.5KW
Motor adjusted travel:
0-80mm
Air pressure:
0.5-0.8MPa
Blade specification:
200mm
Rotary speed:
2800r/min
Surface Harshness:
Ra12.5 µ m
Overall dimension:
850mmX740mmX1280mm
Weight:
150KG

Product packaging
Workshop Showing
Exhibition
FAQ
1.Are you a factory or a trading company?
We are factory
2. How long is the equipment warranty?
One year.
3. How to provide after-sales service?
Provide on-site installation, commissioning and training.Free accessories within one year. Provide remote
service and video guidance.
4. How long is the delivery time?
10-20days after receive the deposit.
