Taijia Flow Meter Factory Price 1/2" Flowmeter Flow Rate Instruments With Manufacturer Price

Product Description

Product Description

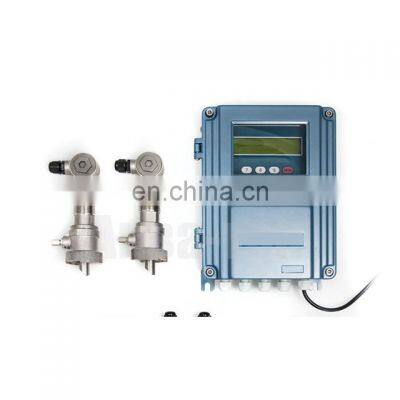

TDS-100F1 Non-invasive wall mounting Ultrasonic flowmeters fixed type ultrasonic flowmeter Introductions for Ultrasonic flow meterTDS-100F1 Wall mounted fixed ultrasonic flow meter can measuring flow measurement by using three types of sensor :clamp-on,flow-cell and insertion sensor. And can memorized the positive and negative,net totaliser flow rate and heat quantity.The data can be last 512 days,128 months,10years . ItemWall mount ultrasonic flow meterAccuracyBetter than ±1.0 %Repeatability0.2%Pipe SizeDN15mm~6000mmMeasurement Period0.5SMeasurement PrincipleTransit-time measurement principleDisplayLCD with backlight. 2x20 letters.OutputOne channel isolation 4-20mA or 0-20mA active output.Inputtwo channel three wire system PT100 platinum resistor input loop,to make heat meter has the function of displaying heat quantity.Three channel 4-20mA input optionalPower supplyAC 85—264V or isolation DC 8-36VDCPower ConsumptionLess than 1.5WEnvironment Temperature-30°C~80°C Environment Humidity85% RHProtection ClassIP65Pipe MaterialAll metals,most plastics,fiber glass,etc, Features for ultrasonic sonic flow meter1.No process interruption2.No moving parts,no leakage3.No risk of contamination and corrossion4.Non-intrusive flow measurement Sensors for TDS-100F1 wall mounted ultrasonic flow meterTechnical parametersS2-typeM2-typeL2-typePipe size (mm)DN15~100DN50~700DN300~6000Pipe size (inch)( 1/2~4" )(2~28" )( 12~240" )Temperature32F~320F ( 0°C~160°C )Dimension (mm) 45×30×30 71×37×40 91×52×44Weight (g) 75 259 535 Packing listMain Unit1 UnitM2-type clamp-on transducer for 2”~28” pipe1 Pair Dedicated shielded transducer cable5mx2Clamp Fixture 1 Set Allen Wrench1 PieceSpare Connectors1 SetUser manual1 PiecePacking list1 Page Company InformationDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.
