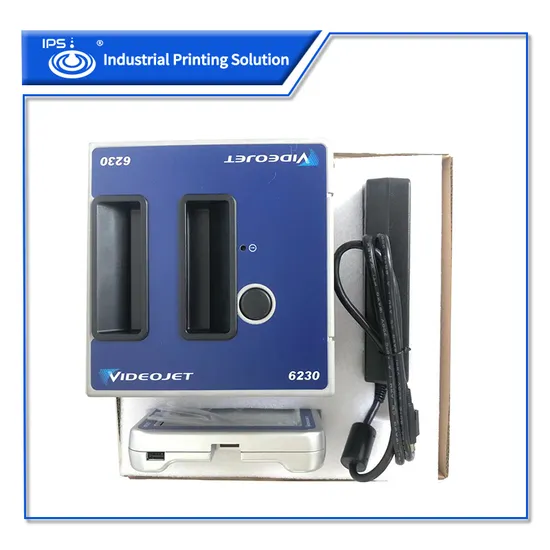

Original Videojet 6230 32mm Tto Thermal Printing Machine Transfer Over Printer for Plastic Bags

Product Description

Original Videojet 6230 32mm Tto Thermal printing machine Transfer Over Printer for Plastic Bags
The Videojet 6230 offers a proven and cost-effective solution for users ready to migrate to a digital solution from a non-digital solution such as hot stamp or roller coders. This solution is ideal for lower speed intermittent and continuous motion flexible packaging applications, and deliver maximum reliability and efficiency for marking variable, high resolution images on flexible packaging and labels - at an affordable price.
Simple usability
Simple change ribbon cassette, with pushbutton lock mechanism, allows for fast and easy ribbon replacement Intuitive tablet-like 5" touchscreen controller with CLARiTY™ interface used on other Videojet printers used in other Videojet technologies Fits your unique production needs
Airless operation removes the need for plant air Offers high-quality codes up to speeds of 150 packs / minute Single design printhead for intermittent or continuous printing Compact design easily integrates into most production lines Built-in productivity
Precise ribbon control with bidirectional stepper motors minimizes gaps between codes and reduces ribbon wastage 700m maximum ribbon length requires fewer ribbon changes versus hot stamp or other competitive TTO systems Simple ribbon path that ensures fast changeovers and a more efficient operation Bluetooth®* connectivity allows operator to control printer from an Android phone** Code Assurance
WYSIWYG print preview allows operators to confirm the correct code is selected Built-in code assurance software helps to reduce operator-induced errors, decreasing unnecessary product waste and rework Real-time clock stamp avoids date errors Benefit from simple code creation with VideojetConnect™ Design or CLARiSOFT™ software

Specification	Value
Printer Mode	Intermittent and Continuous Motion
Print Gap	0.5mm (0.020 in)
Maximum Ribbon Length	700 meters max
Ribbon Widths	Min: 20mm (0.8 in) Max: 33mm (1.3 in)
Continuous Mode:
Maximum Print Area (Width x Length)	32mm x 100mm (1.26" x 3.93")
Maximum Print Speed	500mm/sec. (19.7 in/sec)
Minimum Print Speed	40mm/sec.(1.6 in/sec)
Intermittent Mode:
Maximum Print Area (Width x Length)	32mm x 47mm (1.26" x 1.85")
Maximum Print Speed	300mm/sec. (11.8 in/sec)
Minimum Print Speed	50mm/sec (2.0 in/sec)
Bar Code Printing	EAN8, EAN13, UPCA, UPCE and QR codes
Estimated Maximum Throughput (Single Line Code, Continuous Mode)	150 packs/min
Standard User Interface	CLARiTY™ 5.0 inch color QVGA CSTN LCD and touch screen (800 x 480 pixels)
Leader/Follower Capability (Up to 4 Printers Controlled by One User Interface)	Up to four Videojet 6230 printers controlled via a single CLARiTY™ control unit
Standard Communication	USB memory stick, ethernet, RS232, ASCII and binary communications
Bluetooth Connectivity	Warranted to work with the recommended Videojet Bluetooth USB Adapter only
