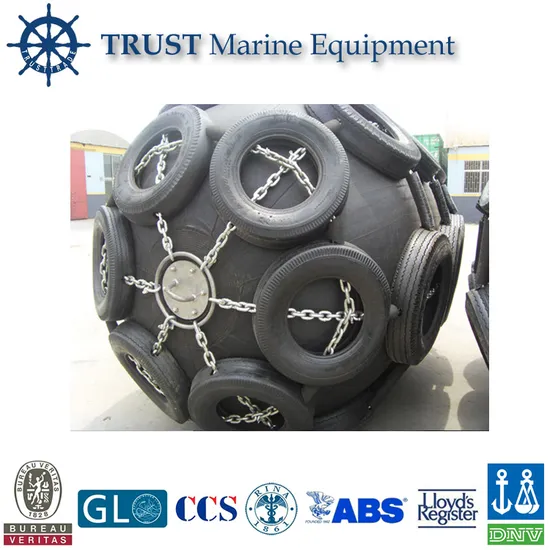

Marine Pneumatic Rubber Fender with Galvanized Chain and Tire

Product Description

Product Description
Pneumatic rubber fender is a kind of ship accessory that buffers and protects the ship upon berthing and now is widely used in ships, ocean platform, offshore facilities, wharf and yacht etc. The Pneumatic rubber fender is more practicable than general rubber fender and effectively economic and therefore becomes popular among the customers.
Features
1,Absorb more energy,less reverse impact on the ships
2,More flexible ,easy installation
3,Long term service life
4,Not being bent out of shape under pressure
5,Good air tightness,safety and reliability
6,High shock absorption,low counterforce and enhance port ability
7,Durable, practical and economical
8,Good quality have been checked by many buyers
9,Optional end fittings for the better suitable of applications
Parameters

Model No.	Size(mm)	Initial Internal Pressure 0.05MPa		Initial Internal Pressure 0.08MPa		Weight
	Diameter*Length	Energy(kNm)	Reaction(kN)	Energy(kNm)	Reaction(kN)	Fender Body	Chain &Tyre Net
SSPF-1	500*1000	6	64	8	83	23
SSPF-2	600*1000	8	74	11	96	32
SSPF-3	700*1500	17	137	24	178	50
SSPF-4	1000*1500	32	182	44	235	80	100
SSPF-5	1000*2000	45	257	63	335	100	152
SSPF-6	1200*2000	63	297	86	386	120	200
SSPF-7	1350*2500	102	427	140	554	165	298
SSPF-8	1500*3000	153	597	211	751	315	450
SSPF-9	1700*3000	191	639	263	830	405	482
SSPF-10	2000*3500	308	875	424	1138	590	890
SSPF-11	2500*4000	663	1381	925	1815	1050	1180
SSPF-12	2500*5500	943	2019	1317	2653	1333	1380
SSPF-13	3000*5000	1210	2104	1571	2709	1880	2388
SSPF-14	3000*6000	1485	2583	1888	3292	2160	2690
SSPF-15	3300*4500	1175	1884	1640	2476	2020	2617
SSPF-16	3300*6000	1675	2783	2338	3652	2300	2880
SSPF-17	3300*6500	1814	3501	2532	3961	2700	3000

About our company
Our company is specialized in manufacturing and exporting marine equipment. To guarantee good quality, we follow ISO9000 standards to inspect our goods. From raw material purchase to pre-shipment inspection, we keep an eye on every step to ensure the satisfaction of our customer on quality. Our products are approved by ABS, BV, CCS, DNV, EC, GL, KR, LR, NK and RINA.
Persisting in the principle of "QUALITY IS LIFE, CUSTOMER IS GOD", we will strive for high efficiency, passion and integrity to provide our customers with high-quality products and superior trade services.
