Double Head Miter Saw/PVC UPVC Aluminum Profile Cutting Machine/PVC Doors and Windows Machinery

Product Description

Product Description

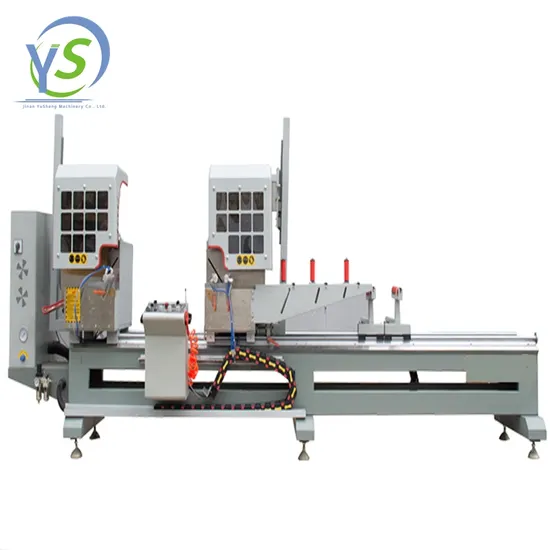

Aluminium Window Door Double Head Precision Cutting Saw
1. The machine can cut industrial aluminum profiles, aluminum doors and windows profiles, curtain wall profiles and PVC profiles.
2. The saw blade automatically swings into 45° and 90° angles, automatically opens and closes the protective cover, so that the operation is safer.
3. Automatic head rotation, bidirectional positioning, clamping, single head can work independently. Can input the dimensions of multiple profiles to be cut at once, enabling continuous cutting of different lengths.
4. Saw blade from back to front, saw cutting profile is more safe and reliable, and saw cutting height and saw cutting width are very large.
5. Selection of high quality aluminum special carbide saw blade, high wire speed, high processing precision.
6. CNC transmission adopts high standard rack and pinion, high transmission precision, accurate positioning, smooth work.
7. The high precision spindle makes the saw blade rotate stably and effectively improve the surface quality of the workpiece.
8. Gas-liquid damping cylinder to achieve uniform feed speed regulation, smooth movement.
9. With micro spray cooling device.
Detailed Photos
Product Parameters

Model	LJZB-500*4200
Power	380V 50HZ ( can be customized )
Saw head motor	2×2.2KW
Working pressure	0.6 ~ 0.8mpa
Air consumption	60L/min
Saw length	Max4200mm Min380mm
Saw width	Max 135mm
Maximum cutting slope	135*200mm
Sawing Angle	90°, 45°
Feed speed	stepless speed regulation 0-3m/min
Saw blade specifications	φ500×4.4×φ30×Z120
Dimensions	5800×1800×1500 mm
Weight	1800 kg
Cutting precision	≤ 0.01mm

Processing Flow Chart
Company Profile
Jinan Yusheng Machinery Co., Ltd. is dedicated to the cutting-edge technology of aluminum profiles, doors, windows, and curtain wall processing equipment, as well as the practical application of processing sites. It has a team of experienced and expert employees in the industry, equipped with a large mechanical processing workshop with complete functions. It is a high-tech enterprise that integrates research and development, production, sales, and service. Since its establishment, the company has been committed to the research and development of energy-saving door and window technology, providing complete assembly equipment for aluminum profiles, ordinary plastic steel profiles, and high-end aluminum insulated glass production lines to the industry. The products cover industries such as industrial aluminum profiles, door and window curtain walls, rail transit, aerospace, industrial manufacturing, and household appliances. The company relies on strong technical expertise, rigorous production and processing, and a complete range of equipment to meet the needs of different investment scales. It can also customize personalized products of different grades according to customer requirements.
Creating value for users is our commitment, taking responsibility for each product is our responsibility, and customer satisfaction is the ultimate goal of our services; Winning customer, employee, and social satisfaction is the driving force behind our progress.
With high-quality products and an efficient service team, Yusheng Machinery looks forward to providing you with high-quality products and services!
Certifications
Our clients
FAQ
Q: Are you a manufacturer or trading company?
A: We are the manufacturer and we have morethan10 years factory experience.As only the machine made by ourself,quality can be trusted,and most important thing is we can do better service after sales.we know how to fix the problem in each parts easily, so welcome to visit to our factory! Q: Our voltage is not 380V/50HZ, if can use the machines.
A: The voltage can be customized as clients' request. Q: How long is the delivery time?
A: For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days. 4. Q: How should I pay for my order? what is the procession of this purchase?
A: You can do 30% prepayment at first, then we will start to make production. when the machine is ready ,
we will take pictures to you, and then you can do the balance. after we got your payment. We will send the machine to you.
5. Q: How about your service after sales? Can your engineer speak fluent English?
A: We offer the service from you received the machine, including installation of the machine,
6. Q: How to use machine? how to let machine work?
A: Usually we will teach you how to do by email or by Whatsapp. Our engineer has many years of experience for CNC machine service. He can speak very good English, so he can solve the problem in short time.
7. Q: How about the documents after shipment?
A: After shipment,well send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by client.
Service
1). At least 1 year from the date of completion of the commissioning.
2). Free consultation service before, during, and after sales;
3). Free project planning and design services;
4). Free debugging of equipment until everything is functional;
5). Free management of equipments long distance shipping;
6). Free training of equipment maintenance and operating personally;
7). Provide 1 year complete warranty and life-time maintenance service;
