China Xuzhou Manufacture Crawler Excavator Xe17u 1.7t Mini Crawler Excavator

Product Description

Product Description
XE17U,featuring high efficiency and energy conservation,is mainly used for earth working conditions.The powerful Kubota D782 engine and hydraulic system are matched perfectly,which can guarantee the product reliablity and define high-efficiency operation and fuel economy.With strengthened structural parts,it is applicable for earth working,road construction and municipal engineering,and allow you to get digging and loading operations done easily.

Product Parameters

SPECIFICATION OF XE17U MINI CRAWLER CRANE
Item	Unit	Parameter Value
Model	-	XE17U
Operation Performance Parameter
Operating weight	kg	1795
Bucket capacity	m³	0.04
Min. tail swing radius	mm	620
Max. digging height	mm	3475
Max. dumping height	mm	2415
Max. digging depth	mm	2290
Fuel tank capacity	L	18
Hydraulic tank capacity	L	17
Engine Parameter
Model	-	D782-ET05
Engine Rated power/speed	kw/rpm	9.8
Maximum torque/speed	N.m	44.5/1500
Displacement	L	0.778
Dimension Parameter
Crane Full Dimension(L×W×H)	mm	3560×1240×2350
Length of boom	mm	1690
Length of arm	mm	1100
Track length	mm	1578
Speed Parameter
Travel speed(H/L)	km/h	4.3/2.2
Gradeability	°	30

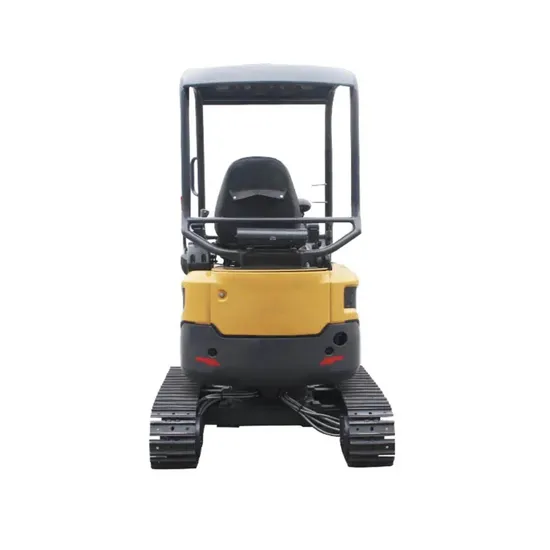

Detailed Photos

Company Profile
HOKA VEHICLE is located in Shanghai, which is a financial, trade and shipping center in China. All these give our company an obvious superiority in trade, transportation and material flow.
With the professional team, first class design, production experience and market capacity, HOKA VEHICLE has exported and delivered more than 5, 000 units Construction Machinery to countries across Africa Middle East, Southeast Asia and South America.Our main products cover more than 11 series, ranging from Hoisting Machinery, Building Machinery, Earthmoving Machinery, Concrete Machinery,Road Machinery,Logistics Machinery, Trucks, Drilling Machinery, Mining Machinery and all other kinds of Construction Machinery.
