Factory Supply Multy Function 304 404 504 Farm Tractor Tractor

Product Description

Product Description Taiyue 30-50hp mini tractorcan be used for light ,medium and heavy duty farm work.By using famous diesel engine,reliable gear
box,and heavy duty chassis,our tractors has sold to Europe,Australia,South American and Africa ,Asia eg many countries.
Taiyue tractor also can be equiped with loader,backhoe,wood chipepr,trencher,mower,plough,harrow,trailer,baler eg many
implements,can do multy farm work.

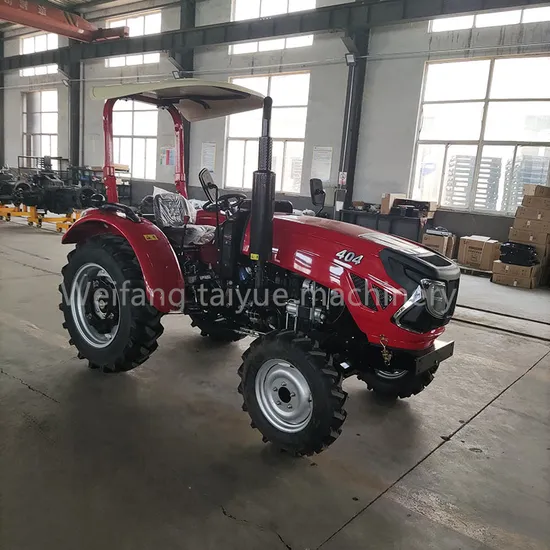

Detailed Photos Mini tractor detailed photos
Product Parameters

SPECIFICATION
Model	254/304	404	504
Drive type	4*4
Engine
Engine brand	Laidong or Yangdong	Laidong or Yangdong	Laidong or Yangdong
Type	3 cylinder, Water-cooling, In-line, 4 stroke	4 cylinder, Water-cooling, In-line, 4 stroke	4 cylinder, Water-cooling, In-line, 4 stroke
Rated speed (r/min)	2300	2300	2300
Engine power (hp)	25hp/30hp/18.4kw/22.1kw	40hp/29.4kw	50hp/36.8kw
Transmission
Clutch	Dry, Single or dual type	Dry, Single or dual type	Dry, Single or dual type
PTO size	6teeth-φ35	6teeth-φ35	6teeth-φ35
PTO Speed(rpm)	540/720 or 540/1000	540/720 or 540/1000	540/720 or 540/1000
Gear shift	8F+2R or 8F+8R	8F+2R or 8F+8R	8F+2R or 8F+8R
Hydraulic system
Hydraulic output valve	2-Way optional	2-Way optional	2-Way optional
Three point linkage
Category of 3-point link	Category I	Category I	Category I
Technical parameter
Dimension(L*W*H) mm	3000*1500*2100	3000*1500*2100	3200*1500*2100
Min. Net weight	1400kg/1450kg	1550kg	1650kg
Wheel base(mm)	1900	1900	1950
Track base(mm) front wheel	1200	1200	1200-1300
Track base(mm) rear wheel	1200	1200	1200-1300
The smallest clearance(mm)	360	360	360
Front tyre	6.0-16/6.5-16	6.0-16/6.5-16 /7.5-16	6.0-16/6.5-16 /7.5-16
Rear tyre	9.5-24/11.2-24	9.5-24/11.2-24/12.4-24 or 11.2-28	9.5-24/11.2-24/12.4-24 or 11.2-28
Steering type	Hydraulic power steering	Hydraulic power steering	Hydraulic power steering

Packaging & Shipping
Mini tractor package can be complete package or iron package ,wooden package,as customer
want.
Company Profile Weifang Taiyue Machinery Equipment Co., Ltd. is an expert agriculture machinery manufacturer, Based on facilities covering 20, 000 square meter and
assets amounting USD10 million. The main products are: tractors,front loader,backhoe,wood chippers, include tractor wood chipper and self power wood
chipper, trencher, seeder, farm trailer, baler machine, hay mower, hay rake, plough, harrow, and other agro implements, etc., which can be customized and
processed according to the special requirements of customers, or OEM production can be provided.
With good quality product, reasonable price, and best after-sale service, we have gained good reputation from all over the world, such as Europe, North,
America, Central and South America, Africa, Australia, New Zealand eg contiments and countires. After Sales Service We supply 18 months warranty,any problem,free part send by air.
We can also do OEM machines for your needs,such as logo,industrial tire,package ,main part eg.
For small quantity,delivery time is 10-15 days.
Certifications
FAQ Q. Are you factory or trading company ?
A: we are factory for tractor and implements,we can supply different kinds of solution for agriculture with reliable quality
and good price machines.
Q.Which payment can be acceptable ?
A: We could accept the payment by T/T, L/C etc.
Q.How about your production quality and delivery time?
A: We only do long time business coporation by supplying reliable quality,every production will be tested many times
before delivery,and can delivery goods in 10-15 days if small quantity.
Q. How about your company's service?
A: Our company supply 18 months warranty,any problem except operation mistake,will supply free part ,if needed ,will
send engineer to solve this problems overseas.We can also supply the part for machines that used for 6 years,so customer
do not worry machine use in future.
Q.How can we make sure the quality from your company?
A:We accept any trial orders ,so you can trust our company and our product quality.


Q: Can you accept customer logo eg requirent?
A:Yes,we can do as customer needs,make logo or label for customers,OEM is availible.
