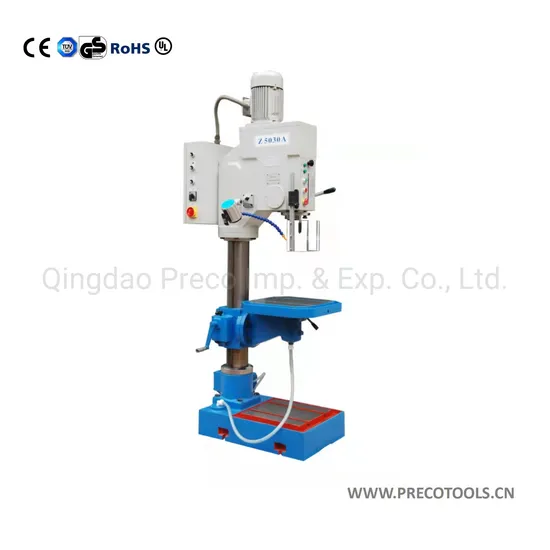

Precision Vertical Drilling Machine Z5030 Z5032A
| US$3,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X50xx
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
50-100mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, RoHS, TUV,UL
Condition
New
Transport Package
1 Set in 1 Polywood Case
Trademark
Neutral or OEM
Origin
China
Production Capacity
10000 Sets/Month
Product Description
Manufacturer high quality of precision vertical drilling machine:Specification:
| Specification | Unit | Z5050A | Z5050 | Z5040 | Z5035 | Z5030A | Z5032A |
| Max.drilling capacity | mm/inch | 50(1.95'') | 50(2'') | 40(1-3/5'') | 35(1-2/5'') | 30(1-1/5'') | 32(1.26'') |
| Max.thread-cutting | mm/inch | M27 | M30(1-1/5'') | M27(1'') | M24(1'') | M20(4/5'') | M20(0.79'') |
| Quill stroke | mm/inch | 240(7.09'') | 180(7'') | 150(6'') | 160(6.5'') | 160(6.5'') | |
| Distance from spindle to column | mm/inch | 360(14.17'') | 360(14-1/5'') | 330(13'') | 320(12/3/5'') | 350(13.78'') | |
| Distance from spindle to table | mm/inch | 600(24'') | 600(24'') | 630(25'') | 620(24 2/5'') | 850(33.46'') | |
| Distance from spindle to foot | mm/inch | 1200(48'') | 1200(48'') | 1200(48'') | 1200(48'') | 1400(55.12'') | |
| Max travel of worktable | mm/inch | 560(22'') | 370(15'') | 560(22'') | 520(20'') | 550(21.65'') | |
| Swivel of table | 45° | 45° | 45° | 45° | 45° | 45° | |
| Spindle bore taper | Morse | MT4 | MT4 | MT4 | MT4 | MT3 | MT4 |
| Spindle speed (steps) | r.p.m | 42-2050(12) | 48-1500(STEPLESS) | 42-2050(12) | 70-2600(12) | 70-2600(12) | |
| Column dia. | mm | ø160 | ø160(6-2/5'') | ø140(5-3/5'') | ø120 | ø120(47'') | |
| Motor power | kw | 2.2/2.8 | 3.3/4 | 2.2/2.8 | 1.5/2.2 | 1/1.5 | 1/1.5 |
| N.W/G.W | kgs | 690/750 | 670/730 | 690/750 | 600/650 | 440/500 | 500/550 |
To know more details of our products, please directly contact us by phone or email.
