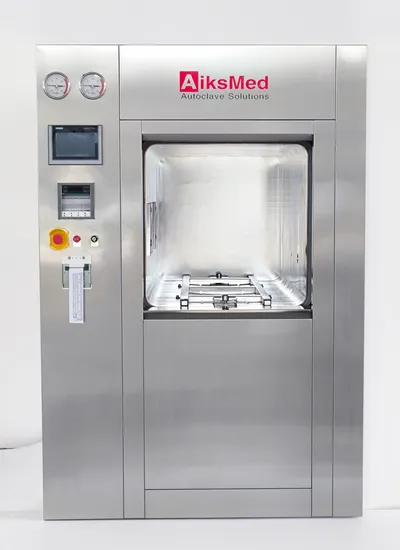

Vertical Sliding Door Pulse Vacuum Steam Sterilizer Autoclave for Pharmaceutical

Product Description

Essential details

Name	Vertical Sliding Door Pulse Vacuum Steam Sterilizer
Brand	AIKSMED
Model	MDH Series
Application	Garments, Tools, Porous Apparatus, Rubbers, Aluminum Caps, Liquids
Door type	Hinger Door, Vertical Door, Horizontal Door.
Chamber Volume	250L,360L,600L,800L,1000L,1200L, 1500L...4000L
Design Pressure	-0.1/0.3 MPa
Design Temperature	144ºC
Working Pressure	0.25 MPa
Sterilization Temperature	105-136ºC
Warranty	1 year
Origin	China

Supply Ability
Supply Ability: 500 Sets per Year Packaging & delivery
Lead time:

Quantity(sets)	1 - 1	2 - 5	6 - 10	>10
Lead time (days)	60	60	90~120	To be negotiated

Working Principle
MDD Series Pulse Vacuum Sterilizer employs intense heat of saturated steam to build up pressure within the chamber and so kill bacterial spores by denaturing and coagulate their cell proteins through hydrolysis, then dry the loading with heat from jacket, while vacuuming out the humidity inside chamber.


Application Features:
---Ring-shaped jacket structure, higher strength and stability.
---Multiple steam access,multi-section heating-up, more uniform temperature distribution, less steam consumption.
---Three kinds of working processes: gravity, pre-vacuum, pulse-vacuum.
---Hinged door, vertical sliding door, horizontal sliding door for option.
---Food grade door seal, hollow structure, compressed air seal technology.
---With pressure safety lock, and interlock function.
---Bio-seal, condensate inactivation for option.


Product Parameters

Model		Volume (M3)	Chamber (W*H*Dmm)	Overall (W*H*Dmm)	Steam (KG)	Water (KG)	CA (L)	Power (KW)	N/W KG
Hinged Door	MDD-0.25D/S	0.25	500×500×1000	1280×1910×1340	18	120	50	1.2	650
	MDD-0.36D/S	0.36	600×600×1200	1280×1910×1540	22	150	60	1.2	800
	MDD-0.6D/S	0.6	610×910×1200	1280×1910×1540	35	300	100	2.6	1200
	MDD-0.8D/S	0.8	610×910×1500	1280×1910×1790	45	350	100	2.6	1400
	MDD-1.0D/S	1.0	610×910×1800	1280×1910×2100	55	400	100	2.6	1600
	MDD-1.2D/S	1.2	680×1180×1500	1460×2000×1800	65	500	120	4.2	1700
	MDD-1.5D/S	1.5	680×1180×1900	1460×2000×2100	80	600	120	4.2	1850
	MDD-2.0D/S	2.0	1000×1200×1700	1780×2100×2020	100	800	150	4.5	2400
	MDD-2.5D/S	2.5	1000×1200×2100	1780×2100×2420	140	1000	150	4.5	2700
Vertical Sliding Door	MDD-0.3D/S-V	0.3	675×675×660	1300×1900×1000	18	120	50	1.1	800
	MDD-0.45D/S-V	0.45	675×675×1000	1300×1900×1340	27	150	60	1.1	900
	MDD-0.55D/S-V	0.57	675×675×1250	1300×1900×1590	35	300	100	1.6	1000
	MDD-0.65D/S-V	0.68	675×675×1500	1300×1900×1840	40	350	100	1.6	1200
	MDD-0.75D/S-V	0.77	675×675×1700	1300×1900×2040	45	350	100	2.5	1300
Horizontal Sliding Door	MDD-1.0D/S-H	1.0	680×1180×1250	2200×2000×1750	55	400	100	2.6	2100
	MDD-1.2D/S-H	1.2	680×1180×1500	2200×2000×2000	65	500	120	4.2	2300
	MDD-1.5D/S-H	1.5	680×1180×1900	2200×2000×2400	80	600	120	4.2	2500

Packaging & Shipping

Company Profile

AIKSMED is an expert manufacturer of diversed sterilizers and autoclaves, ranging from Cassette Autoclaves for dental &
ophthalmology clinics, Laboratory Steam Sterilizers for research organizations, Saturated Steam Sterilizers for garments and
tools, and Superheated Water Cascade Sterilizers for liquid injections in pharmaceutical industries.



After Sales Service

FAQ
1.What is FAT and SAT?
FAT means Factory Acceptance Test, before delivering autoclaves, customer can send his technician or 3rd party personel to test machines in AIKSMED facotry, it usually takes 2~3 days. SAT means Site Acceptance Test, AIKSMED will send 1~2 engineers to user's site for equipment commissioning and staff training, ensuring production able to be carried out successfully.
2. Is it possible for our autoclave and sterilizers idle for years to restart?
We have abundant experience to upgrade the sterilizers manufactured by world famous brand, glad we can provide you advice and solutions.
3. Regarding ampoule injection, How to choose between steam sterilizer and superheat water autoclave
Firstly these two kinds of autoclave sterilization machines got their own advantages on heating-up speed and cooling, uniform thermal distribution, and etc. But It mainly depends on the loads packing material and size, if glass ampoule, and size is 1ml, 2ml, 5ml, 10ml, we recommend steam sterilization with advantage of fast heating-up and less cost on utility consumption. However, if the container size over 10ml, then superheated water cascade sterilizer is more appropriate to reduce the broken rate after sterilizing, with advantage of regular heating-up, but it costs more on utility consumption and budget. Customer needs to consider based on own situations and long term operation.
