UL1007 PVC Insulated Wire of UL 758 Internal Wiring for Electrical Equipment

Product Description

Product Description

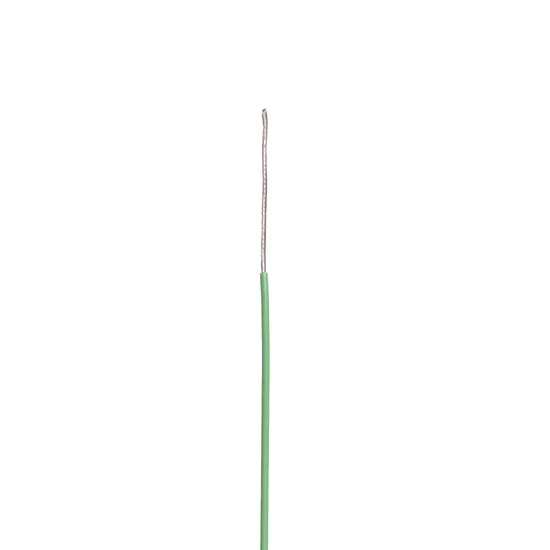

UL1007 PVC insulated wire

Temperature Range :80ºC
Nominal Voltage : 300V
Reference Standard : UL758,UL1581
Tinned or bare , strand or solid Copper Conductor , 32AWG-16AWG
Insulation Material: PVC
Uniform insulation thickness to ensure easy stripping and cutting
Passes UL VW-1,cULFT1 and JQAF-Mark Flame Test
Application: For internal wiring of electonic and electrical equipment
UL/CUL Certificate No.:E216252

Part NO.	Conductor			Insulation		Max. resistence at 20ºC Ω/km
	AWG	No./mm	Diameter (mm)	Nom. Thickness (mm)	Outer Diameter (mm)
UL1007	32	7/0.080	0.24	0.40	1.04	556.00
UL1007	30	7/0.102	0.30	0.40	1.10	354.33
UL1007	28	7/0.127	0.38	0.40	1.18	223.75
UL1007	26	7/0.160	0.48	0.40	1.28	139.76
UL1007	24	11/0.160	0.61	0.40	1.41	88.36
UL1007	22	17/0.160	0.76	0.40	1.56	60.16
UL1007	20	21/0.178	0.94	0.40	1.74	38.58
UL1007	18	34/0.178	1.20	0.40	2.00	22.98
UL1007	16	26/0.254	1.50	0.40	2.30	15.06

Application Area
Manufacturing Shop
Certifications We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949.
Packaging & Shipping

Company Profile Jiangyin Yuanda Electrical Material Co., Ltd. is a professional manufacturer, and our main products include
A. Series of automotive cables which can meet various standards , like ISO, SAE, JASO, JB/T, VW, LV, GMW and etc. ; B. RF, RG series of coaxial cables with abroad application in cellphone , laptop , router , 5G/6G , war industry , smart car and etc. for communication ;C. UL, VDE, CCC verified , PVC/cross-linked polyolefin/silicone rubber/fluoroplastic insulated series of household electric appliance wires ;D. Heat resistant silicone rubber sleeves with (or without) fiberglass braid , widely used in household appliances, motors, vehicles and etc. ;E. Special cables applicable to urban orbitals, photovoltaic systems, wind power generation, space navigation and etc..
mmai
n products includeain products includemain products includemain products include

Our Advantages Yuanda have abundant technical strength, advanced equipment ,functional testing facilities and good quality-ensuring systems . We have acquired the certificates of IATF 16949,ISO 9001,ISO 14001,OHSAS 18001 for automotive cables and communication cables . Series of silicone rubber, fluorine plastic, crosslinked polyolefin electronic wires and sleeves are certified by UL,VDE and CCC.Especially our aluminum conductor cable , new energy high-voltage shield cable , and some coaxial cables used in automotive , enjoy high popularity in automotive industry. With high-qualify products, reasonable price and splendid after-sales service, our products supporting customers are exported to the world.
