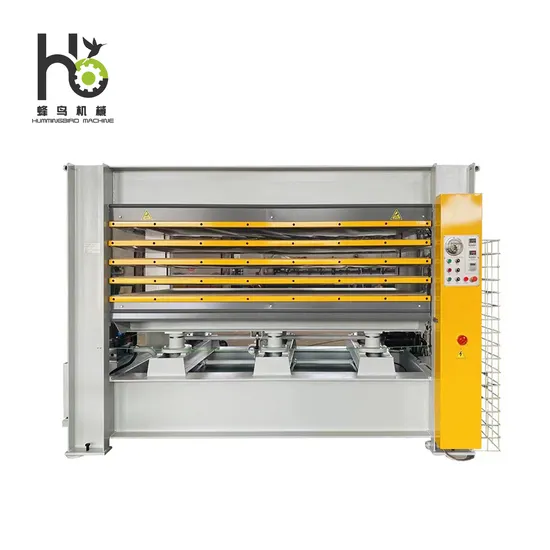

Hot Press Machine/ Multi Lamintion Heat Press Machine/MDF/Door

Product Description

Product Parameters
Note: Customers can customize the number of layers according to their needs

Model	HBRY-120	HBRY-180
Max.Pressure	120Ton	180Ton
Board feeding direction	Transverse	Transverse
Layers	4	5
Layer spacing	75mm	70mm
Number of hot press plate	5pcs	6pcs
Hot press plate size	2500*1300*42mm	2700*1370*42mm
Cylinder	110mm*6pcs	240mm*2pcs
Cylinder stroker	300mm	350mm
Compression resistance	≤21 Mpa	≤21 Mpa
Heating medium	Thermal oil	Thermal oil
Max. temperature	180ºC(adjustable)	180ºC(adjustable)
Overall dimension	3550*1370*2260mm	3550*1370*3400mm
Weight	12.5Ton	19Ton

Applied Widely
Plywood has a wide range of applications. In the construction industry, it is used for building formwork, providing a stable and smooth surface for concrete pouring. It is also commonly employed in interior decoration, such as for making partition walls, ceilings, and wall panels, adding aesthetic and functional elements to indoor spaces. In furniture manufacturing, plywood serves as a fundamental material for constructing various pieces like cabinets, wardrobes, and tables, offering strength and versatility. Additionally, it finds use in the production of packaging materials, especially for creating sturdy crates and boxes to protect goods during transportation and storage. Moreover, plywood is utilized in the automotive and shipbuilding industries for making components like interior trims and structural parts due to its good mechanical properties and workability.
Detail Accessories
Adopting national standard H steel andchannel steel to ensure that the rack issturdy and durable.
Heating system:the meticuloussegmented design, low energyconsumption, uniform heat transfer.adjustable temperature.
Simple button operation, easy touse,easy to learn,be clear at a glanc.
Each of our machines is subjected torepeated and rigorous testing to ensuresafety.
Features
1.Hot Plate: It is made of high-quality carbon solid steel plate with high precision, high strength and durability. 2.Heating System: After careful segmentation design, low energy consumption, uniform heat conduction and adjustable temperature;3.Hydraulic system: the main hydraulic components are imported, and the pressure is adjustable4.It fix with Solid drilled holes steel plate, therefore it is more stable and durable.5.The control system is used mainly to control the heating and hydraulic system, which is related to the sensitivity and safety.
Production Details
