Rotary Multi Station Laser Marking System for Automatic Mark Engrave Metal Non-Metal
| US$5,000.00-12,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CKD-RMLT-20/30/50/60/100, V18.03
Laser Visibility
Invisible
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Solid Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Laser Power
Optional: 20/30/50/60/100W
Laser Source
Fiber Laser Source: Q-Switched or Mopa
Marking Scope
Optional: 100*100/150*150/200*200mm
Computer
Built-in, English Language
Material
Metal and Some Non-Metal
Function
Batch Automatically Marking
Shipping Time
5-10 Work Days After Payment
Transport Package
Wooden Box
Specification
CE passed, Europe/ Asia/ America Standard
Trademark
CKD LASER
Origin
Shenzhen, China
HS Code
8486204900
Production Capacity
20 Sets/Month
Product Description
APPLICATION
CKD-RMLT is an automatic laser marking equipment, which is used for material of standard size. For examples, series number marking on bearing, logo printing on packages, brand engraving on caps and so on. It uses laser to mark contents on kinds of materials, such as metal, painting face, dark paper, plastic and so on.
CKD-RMLT is highly integrated, without extra installation. With optical gratings beside the door, stop machine once hands put in work scope, avoid production safety accident.

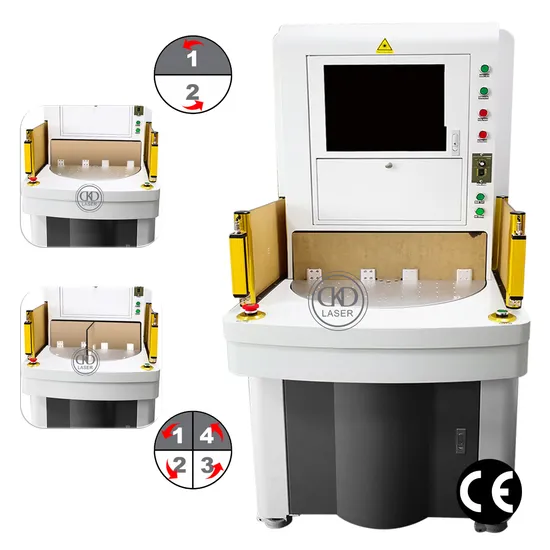

CKD-RMLT can be 2 stations or 4 stations.
CKD-RMLT's work flow, take 2 stations as example:
1. put material in one station which is outside the machine, such as "2".
2. the machine load the machine go inside the machine, from "2" to "1".
3. laser mark on material at location "1".
4. the machine load the marked material outside, from "1" to "2".
The whole equipment is mature and stable.
The laser scan scope is optional, 100*100mm or 200*200mm, suggest lower power match smaller scope.
| CKD-RMLT-20 | CKD-RMLT-30 | CKD-RMLT-50 | CKD-RMLT-60 | CKD-RMLT-100 | |
| laser | fiber laser, Q-switched or MOPA | fiber laser, Q-switched | fiber lase, MOPA | ||
| scan scope | 100*100mm | optional: 100*100/150*150mm | |||
| computer | with | ||||
| focus way | motorized focus | ||||
| work station | optional: 2 / 4 | ||||
Set smoke channel behind the machine, users can connect a smoke purifier or other smoke devices, to reduce bad smell, protect lung from dusty during laser marking.
Send your needs to below dialog for consult or help, please remember write us your company name and address:
