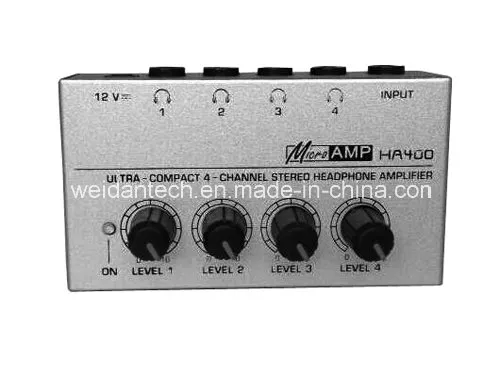

Ultra-Compact 4-Channel Metal Stereo Headphone Amplifier with MP3 support Earphone Splitter

Product Description

Product Description
Ultra-compact 4-channel stereo headphone amplifier for all types of headphones.
Specifications:
*Ultra-compact headphone amplifier system for studio and stage applications
*4 independent stereo high-power amplifier sections
*Highest audio quality with virtually all types of headphones even at maximum volume
*Phones Level control per channel
*DC 12 V adapter included
*High-quality components and exceptionally rugged construction ensure long life
*The super-compact, flexible HA400 can amplify up to 4 pairs of headphones and up to 4 independent volumes all at the same time.
*The flexible HA400 contains 4 high-power stereo amplifiers that maintain the highest sonic quality even at maximum volume levels. Ultra low-noise *4580 operational amplifiers are included for outstanding audio performance. These are the same op amps found in full-size audio equipment.
*Type: 1/4" TRS connector, stereo
*Impedance: 100 kOhms
*Max. input level: +15 dBu
*Headphone Outputs
*Impedance: approx. 80Ohms
*Max. output level: approx. 40mW in 100Ohms
*Power Supply(external power supply, 12V / 150mA)
*Power range: USA/Canada (120V~, 60Hz), China (220V~, 50Hz), U.K./Australia (240 V~, 50Hz), Europe (230V~, 50Hz), Japan (100V~, 50/60Hz)
*Dimensions (HxDxW): approx. 1-5/6" x 2-1/4" x 4-1/16", (approx. 46.5mm x 57.2mm x 103.6mm)
*Weight: approx. 0.38lb. (190g)

Approval

CE, ROHS

Detailed Photos
