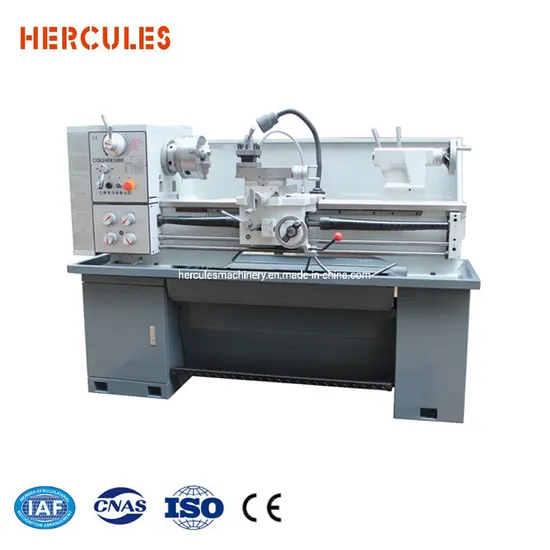

C0636D Torno Horizontal Metal Bench Turning Lathe Milling Grinding Machine for home use
| US$5,000.00-8,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
C0636D
Guide Rail
Horizontal Guide Rail
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Bed Type
Normal/Gap
Bed Size
1000mm
Transport Package
Pallet
Specification
1930*760*1530mm
Trademark
PLOTO OR OEM
Origin
China
HS Code
8458190000
Production Capacity
8000 Sets/Year
Product Description
| Specification | C0636D |
| Max. Swing over bed | Φ360mm |
| Max. Swing over cross slide | Φ224mm |
| Max. Swing over gap | Φ502mm |
| Distance between centers | 1000mm |
| Width of bed | 180mm |
| Spindle nose | Φ52mm |
| Taper of spindle bore | D1-5 |
| Range of spindle speeds | 70-2000RPM |
| Metric threads range | 0.4-7mm |
| Inch threads range | 4-56T.P.I |
| Range of longitudinal feeds | 0.052-0.392mm/rev |
| Range of cross feeds | 0.014-0.380mm/rev |
| Max. travel of cross side | 170mm |
| Max. travel of top side | 95mm |
| Max. travel of tailstock quill | 100mm |
| Taper of tailstock | M.T.#4 |
| Motor power | 1.5kW |
| Hercules Machinery Equipment Ltd. | |
Standard Accessories:
1. Three Jaw Chuck
2. Four Jaw Chuck
3. Face Plates
4. Steady Rest
5. Follow Rest
6.Coolant system
7. working light
8. Operation Manual
9. Foot brake system
10. Dead center
Optional Accessories
1. 2-AXIS DRO 3-AXIS DRO
2. CE electrical components+leadscrew cover+chuck cover
3. Quick change tool post
4. Live center MT4#
5. Tool post cover
