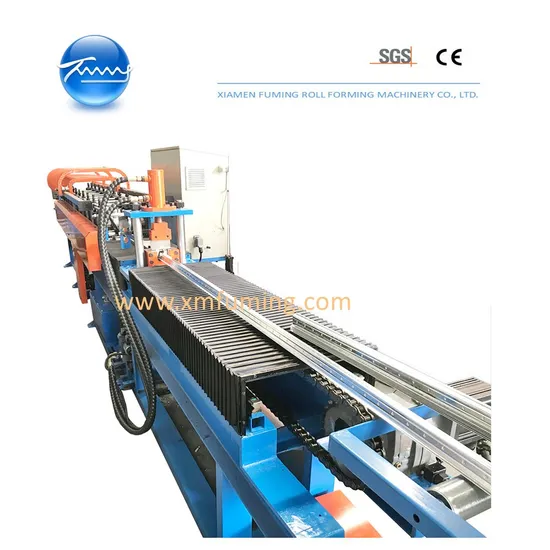

Roll Forming Machine for Roofing Truss/Batten Profile
| US$12,000.00-24,500.00 | 1 SET (MOQ) |
Basic Info.
Certification
CE, SGS
Condition
New
Customized
Customized
Usage
Roof
Transmission Method
Gear/Sprocket, Gear Box, Toroidal Worm Box
Color
Customized
Thickness
0.3mm-0.6mm
Feeding Width
450MPa~550MPa
Transport Package
Container
Specification
40GP
Trademark
FUMING
Origin
Xiamen
HS Code
8455229090
Production Capacity
10sets/Month
Product Description
| ROLL FORMING MACHINE FOR ROOFING TRUSS/BATTEN PROFILE | |
| Material Specification | |
| Thickness | 0.3mm-0.6mm |
| Material | GI |
| Yield Strength | 450MPa~550MPa |
| Machine Components | |
| Roll Forming Machine | |
| Driving system | Gear/sprocket |
| Forming station | 11 stages to form |
| Roller material | 45# steel, heat treatment, CNC lathes, hard chrome coated |
| Main motor | 5.5KW, frequency speed control |
| Production speed | Approx. 40m/min |
| Hydraulic Non-stop Cutting Device | |
| Ball screw driving, linear rail guiding, servo motor to drive: 2.0KW | |
| Cutting type | No blanking cut |
| Cutting tool material | Cr12, heat treatment |
| Hydraulci pump motor | 5.5KW |
| PLC Control System | |
| Function | Control quantity and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2 mm |
| Control Voltage | 24V |
