China Fruit Sorter Grader Cherry Tomatoes/Lychee/Dates/Jujubes Sorting Grading Packing Machine

Product Description

Fruit Adjustable Grading Machine
Product Description

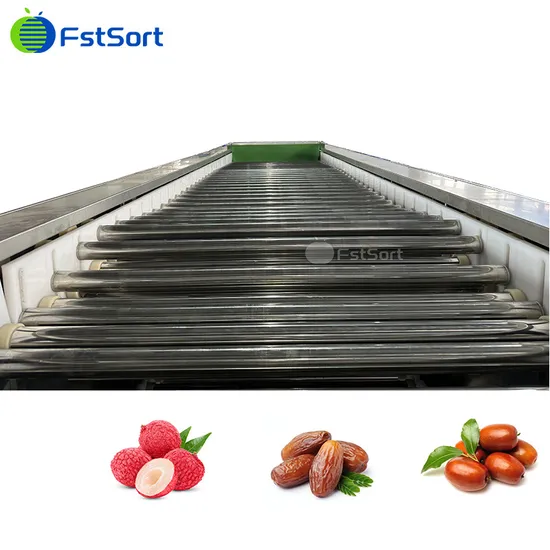

Fruit grading packing machine consists of elevator, fruit picking table ,grader and packing system. The elevator is automatic lifting and uniform feeding can be achieved through automatic rotation of roller. There is a fruit picking table of 1.5 meters on the roller, and the control cabinet is equipped with weighing device. Adjustable roller graders use a series of forward moving rollers to size vegetables by width/diameter - a fixed roller for the bottom bed, and a height adjustable roller for the top bed. Each upper roller is mounted on a polymer guide plate, which allows them to be lifted vertically to make specified grade sizes.
The FstSort fruit adjustable roller grader is very flexible and versatile, suitable for a wide range of crops such as litchi, cherry tomatoes, dates, jujubes and so on.
Features
1.Low power consumption, low noise, no damage to fruit, flexible movement, easy maintenance.
2.One machine multi-purpose, wide range of application, high sorting efficiency, simple operation.
3.Reasonable design, compact and sturdy structure, beautiful appearance.
4.Made of stainless steel material, high hardness body invariable, equipment strong and durable.
5.This machine is suitable for grading all kinds of round and oval fruits and vegetables, and the parts contacting with fruits are all food-grade materials.
Specification

Model	FR-SC1021
Capacity	3t/h
Material	Stainless Steel
Voltage	380V
Sizes/exits	5
Dimension	9660*1450*1160
Power	2.64kW, 50Hz

FAQ
1. Q: How much wax it uses?
A: Wax consumption: 30L per hour (calculated according to the spraying for 3 seconds and the stopping for 5 seconds, you can change the speed) 2. Q: They say 1kg of wax is enough for 1 ton of fruits.. correct?
A: Yes, in real working situation, its less. 3. Q: How much water consumption?
A: Water tank capacity: 2.45 cubic meters
Spray water consumption: 1.5 tons per hour (with 2 pipes 6 nozzles) 4. Q: How long is the warranty?
A: All machines come with a one-year warranty from date of installation.
5. Q: Do you have people for installation and start up for the machine?
A: Photos, videos and instructions will be sent to the customer to aid installation and operation of the machinery. If the customer requires additional assistance, an engineer can be sent from China.
6. Q: What assistance can you provide in installation&operation?
A: Yes We will provide assistance anytime you need, normally we provide video and manual for operation/installation, then we will create a group for your engineer and our engineer so you can ask questions anytime.
7. Q: Production time? Or do you have in stock?
A: Because the production line is customized, we don't have stock, and normally the production time is about 20~30 working days depend on the functions.
