Customizable Diameter PVDF Circular Rod, NSF Certified for Durability

Product Description

Product Description

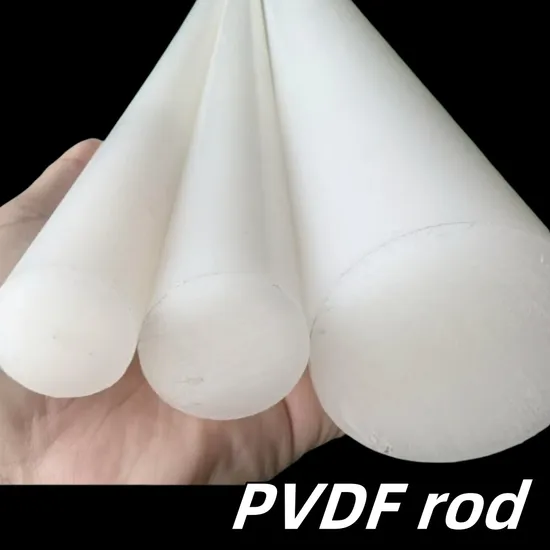

NAISFU-PVDF rod
NSB10150
The Customizable Diameter PVDF Circular Rod from Naisfu Precision Technology is engineered to perfection, boasting a plethora of remarkable attributes. Its high-temperature resistance allows it to function seamlessly at an impressive 150 degrees Celsius. This rod excels in combating chemical corrosion and hydrolysis, offering unparalleled resistance to the elements, including ultraviolet radiation and harsh weather conditions. Designed with high mechanical strength, it features exceptional rigidity and outstanding creep resistance. Its superior sliding and wear resistance make it a durable choice. Furthermore, the rod is characterized by its inherently low flammability and excellent electrical insulation properties, making it an ideal material for a wide range of demanding applications.

size	Φ10mm	Φ15mm	Φ20mm	Φ25mm	Φ30mm	Φ35mm	Φ40mm	Φ45mm	Φ50mm
unit	kg/m	kg/m	kg/m	kg/m	kg/m	kg/m	kg/m	kg/m	kg/m
weight	0.16	0.35	0.62	0.98	1.38	1.87	2.48	3.1	3.8

Calculation formula for bar weight: m=π * r ² * h * ρ (p: 1.75-1.79)
Note: We produce PVDF rods in sizes ranging from 10mm in diameter to 250mm in diameter, with each rod measuring 1000mm in length. The size chart displayed is for reference only. If you have any needs, please contact our sales team, who will provide you with the most comprehensive answer.Detailed Photos
We have sufficient inventory and production capacity to ship to you in the shortest possible timeApplication scenariosApplication areas:
In the field of electronics and electrical engineering, PVDF has become an indispensable material due to its excellent insulation performance and dielectric strength, used for wire insulation layers, cable sheaths, etc.
In the field of petrochemicals: Due to its excellent chemical resistance and mechanical properties, PVDF is used in pipelines, valves, pumps, and other equipment in the petroleum and chemical industries.
In the pharmaceutical industry, PVDF's chemical resistance and biocompatibility make it an ideal material for non stick coatings, medical equipment, and other applications.
Environmental protection field: PVDF's weather resistance and durability make it suitable for making water treatment membranes and other environmentally related products.
In summary, PVDF resin plays an important role in multiple fields due to its unique physical and chemical properties, from electronics and electrical to petrochemicals, to pharmaceuticals and environmental protection
More product choices
Company ProfileNaisfu Precision Technology (Taizhou, Jiangsu) Co., Ltd. stands at the forefront of innovation as a leading enterprise in the production, research, and development of cutting-edge fluoroplastic raw materials and profiles. Our company not only meets but exceeds the production standards of globally recognized benchmarks (GB, DIN, ANSI, JIS, BS). We also offer bespoke non-standard product design and on-demand manufacturing. Committed to our core philosophy, 'technology produces excellence, quality creates brand,' we have garnered the trust and respect of millions. Our flagship products, including PVDF, FEP, and ETFE, are celebrated across industries such as chemical, semiconductor, electronics, construction, biopharmaceuticals, and solar cells, where they continue to set benchmarks for quality and performance.
FAQQ:Are you a manufacturer or a trading company?
A:We are a manufacturer with our own production equipment.Q:How long does the delivery cycle take?A:Generally, it takes 7-15 days after payment, depending on the quantity of orders you provide.Q. What is your sample policy? A: We could offer the sample for free charge but your esteemed company will pay the cost of freight.Q. Do you test all your goods before delivery?A: Yes, we have 100% inner inspection in our own laboratory and plant before delivery.Q: How do you make our business long-term and good relationship?A: 1. We keep good quality and competitive price to ensure our customers benefit ;2. We respect every customer as our friend and we sincerely do business and make friends with them.
