Double Side Spindle Tool Magazine Horizontal CNC Machining Center for 1500 mm Parts

Product Description

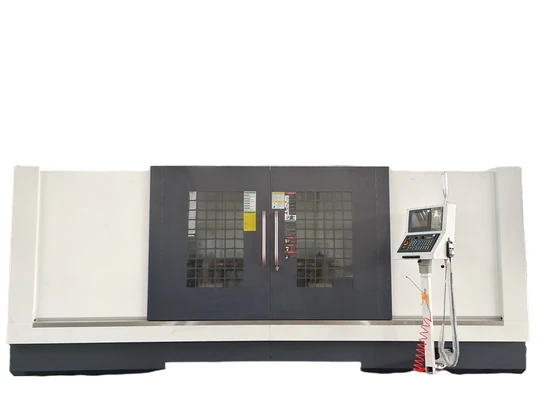

Double Side spindle tool magazine horizontal CNC Machining Center for 1500 mm parts
Product Description
| ARGUMENT

Project	Unit	Parameter
usage
workpiece diameter	mm	80~200
workpiece length	mm	800~1500
process details		heavy milling,edge hole drilling,tapping,boring,turning
custom details		diameter,length of parts
function		completer process with rmetal shaft
details
axis each side		2~4
tool magazine	P	16/32
cnc controller		double channel
		KND.GSK.FANUC.SIEMENS.....OPTIONAL
OVERVIEW
Overall machine size (approx.	mm	6200×2100×2400
Overall machine weight (approx.)	kg	7000
Total power (approx.)	kw	60

Detailed Photos
| DETAIL PRESENTATION
STRUCTURAL DESIGN

Featuring an innovative double-ended spindle design, our machine integrates a horizontal spindle box layout with three dynamic moving axes on each side, enabling the simultaneous execution of milling, drilling, and tapping on two sections of the workpiece.



HARDWARE DESIGN

The machine boasts an integrated casting base and spindle box, complemented by an enclosed double-layer protective design,
featuring first-class domestic quality accessories to ensure durability and reliability.
Embrace the excellence of global brand accessories with customizable options available.

SPINDLE DESIGN

Experience precision with our dual-end face processing,
as each side is equipped with a sophisticated automatic tool change magazine, accommodating various drilling and tapping needs with
ease and flexibility.




USE DESIGN

Utilize the convenient foot switch and manual trimmer, along with robust BT50 spindles, incorporating a dual-channel CNC system for enhanced precision, coupled with an adjustable self-centering hydraulic clamp, high-pressure coolant for optimal performance, ensuring effective chip flushing and cooling





customizable 3-axis and 4-axis configurations for each side,
with an automatic adaptation for more efficient symmetric groove machining tools.
Features double spindle/double automatic tool magazine for unmatched productivity.








Certifications

| CERTIFICATES & ACTIVITIES


Recognized as China's leading manufacturer of CNC machine tools for double-sided processing,
backed by hundreds of technical patents, specializing in drilling, milling, and turning shaft parts with exceptional precision.
Our high-quality positioning machine tool products are highly esteemed by users in developed countries worldwide.
