US$40,000.00-70,000.00
|
1 units
(MOQ)
|
Basic Info.
Arm Structure Form
40X-5rz
Vertical Height of Boom
39.5m
Overall Dimensions of The Whole Vehicle
10530*2530*3960
Chassis
Ca5300thbp1K2t2be5a81
Hydraulic System Type
Open
Production Capacity
100units/Year
Product Description
Product Description

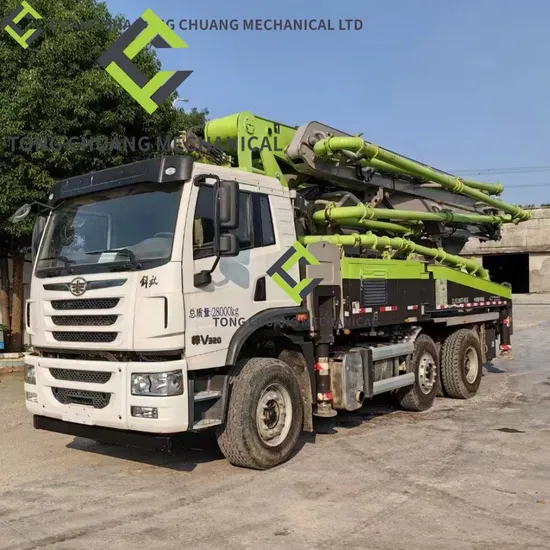

Product Features and Advantages: Dedicated function: Concrete pumping Concrete pumping unit with backward extension of 660mm Maximum net power of engine: CA6DL1-32E5 (235 Kw) ABS manufacturer/model: Zhejiang Wan'an Technology Co., Ltd./VIE ABS-II Side protection device material: Aluminum alloy 6063 Rear lower protection function with a height of 490mm above the ground Option for different fender structures New front face cab available Company Name: Changsha Tongchuang Mechanical Co., Ltd
Product Parameters
Pump truck parameters |
Brand | China First Automobile Group Co., Ltd | Engine model | CA6DL1-32E5 |
Vehicle Weight (kg) | 27870 | Dimensions(L*W*H)(mm) | 10530*2530*3960 |
Chassis | CA5300THBP1K2T2BE5A81 | Kilometers driven | 16338KM |
Engine Power(kW) | 238 | Engine displacement (cc) | 7.7L |
Quantity of concrete delivered | 42108 cubic meters | Engine operating time | 1942 hours |
Delivery time | 842hours | maximum speed | 85km/h |
Vertical Reach | 39.5 meters | Horizontal Reach | 35.15meters |
Pump system parameter information |
Theoretical displacement of concrete (m ³/ h) | 100/60 | Max Output Pressure (Mpa) | 8/15 |
Hydraulic system | open type | Concrete cylinder cylinder diameter stroke (mm) | 230×1800 |
