X5040 Vertical Milling Machine with Table Size 1700X400mm

Product Description

Product Description

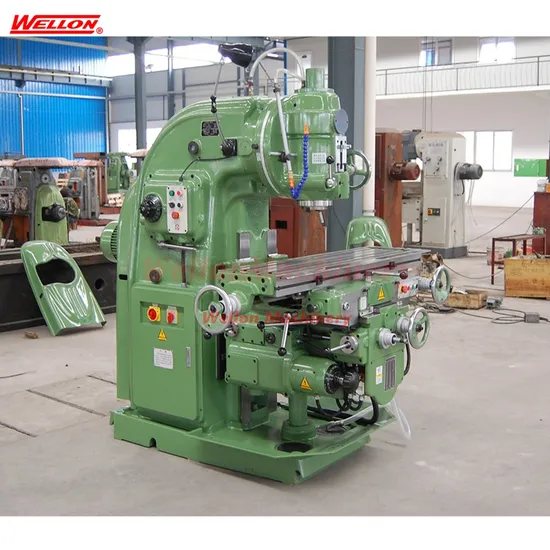

X5040 Vertical Milling Machine with Table size 1700x400mm Detailed Photos
Product Parameters

Features:
Model X5040 Vertical Knee-type Milling Machine, has extra travel in longitudinal, operating control adopts a cantilever panel.
It is suit for milling flat, inclined face, angular surface, slots by employing disc cutters, angular cutters.
When mounted with the index, the machine will be able to perform milling operations in gears, cutter, helix groove, cam and
tub wheel.
Vertical milling head can be swiveled by ± 45° .
Spindle quill can be moved in vertical.
The longitudinal, cross and vertical movements of the table can both be operated by hand and power, and it can be rapid moved.
Working table and slide ways adopted quality cast hardened ensure high accuracy.
Technical parameter:

Model	Unit	X5040
Table size	mm	1700x400
T-slots(NO./Width/Pitch)		3/18/90
Longitudinal travel(manual/auto)	mm	900/880
Cross travel(manual/auto)	mm	315/300
Vertical travel(manual/auto)	mm	385/365
Rapid feed speed X/Y/Z	mm/min	2300/1540/770
Table feed range(X/Y/Z)	mm/min	23.5-1180/15-786/8-394
No. of feed steps	steps	18
Spindle bore	mm	29
Spindle taper		7:24 ISO50
Spindle speed range	r/min	30~1500
Spindle speed step	steps	18
Spindle travel	mm	85
Max.swivel angle of vertical milling head		±45°
Distance between spindle nose and table	mm	115/500
Distance between spindle axis and column	mm	450
Feed motor power	kw	3
Main motor Power	kw	11
Overall dimensions(L×W×H)	mm	2556×2159×2258
Net weight	kg	4250/4350

Standard accessories:
Mill chuck kits
Wrench
Draw bars(2)
Oil gun
Foundation screw
Optional accessories:
Dividing head
Machine vice
Rotary table
3 axis Digital readout
