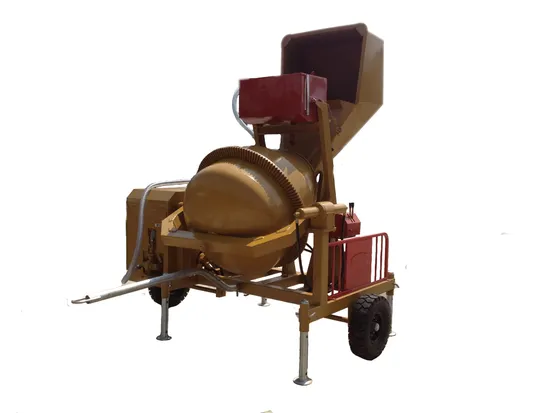

Topmac 250liter Small Hydraulic Concrete Mixer Machine with Hydraulic Hopper

Product Description

Topmac 250liter small hydraulic concrete mixer machine With Hydraulic Hopper Product Description

Concrete Mixer with Hydraulic HopperTDCM250-13DH

Performance:
a rigged with advanced metallurgy and technology. Designed to perform for continuous mass concreting toughness required at any site Machine
Chassis: Made from rectangular & square tubular sections of high strength
Drum:
Large drum with 20% overload capacity. Fabricated from rolled steel plates. Its bevel shaped and revolves noiselessly on a single hot blasted ci gear. A quick homogeneous mix with enhanced daily output is guaranteed
Hopper:
Top Covered ,Centrally Supported Hopper mounted on rectangular tube loaded arm ,Specifically designed for rapid discharge
Operation Safety :
1.Light, smooth and positive linkages allows operator fatigue working
2.Full covered moving parts and dampeners provided in compliance with safety regulations
3.Ample space in the engine compartment facilitates air circulation and convenience in maintenance.
Main Specifications

	TDCM250-13DH
Power	13KW
Power source	Diesel Or Electrol Motor
Drum total Volume	660 liter
Capacity (unmixed)	320 litre
Capacity (mixed)	200 litre
Mixing time	40 sec.
Capacity Per Hour	6~8m3
Dimension	1950×2700×2950mm
Steel Thickness of Drum	4mm
Operation	Maunally Fed
Weight	1050kg

Shipping, Delivery & Maintenance

20' container can be loaded with	4 units
40H' container can be loaded with	8 units
Delivery time	4 weeks after confirmation of the order

Drawing Interpretation


Scan of Factory

Quality Control
QUALITY SYSTEM The Manufacturing Procedures used for all Mixers have been compliant with the Quality Requirements of ISO-9001 since 2005 and have been updated and approved by CQM China since 2009 as compliant to ISO 9001:2008. 3-D MODELLING Since 2009 all Mixers are designed and constantly improved with the use of three-dimensional modeling softwares.
CNC MACHINE CENTER The steel fabrication of the mixer tank is machined with a CNC boring machine to guarantee the perfect alignment and parallelism of the mixing shafts.
ASSEMBLY LINE The Mixers are line assembled giving very short lead times due to the high level of standardisation.
PATENTS The Shafts' Seals as well as other particular features are protected by International Patents..

Packaging & Shipping



Related Products


Our Services
The product purchase is never the last step of a sale, but rather the first step of a long-term relationship. Our team is committed to a proactive approach that offers continuous follow-up and support to our client. We also offer yearly maintenance contracts tailored to specific client needs, including repair, maintenance, maintenance audit, certified calibration, software data backup, fault code analysis, and operator training.
Equipment assessment
We offer our clients an on-the-ground available stock of spare parts & consumables. Any additional stock requirements can be easily ordered and delivered within a few days.
Installation & commissioning
Our certified team handles the installation and commissioning of our equipment. We also offer training sessions to the operators and technicians of our clients to ensure your technicians fully understand how to maintain high equipment productivity.
Company Information
TOPALL Company Have Been Founded In 2005, For This Reason TOPALL Started To Produce Engineering and Building Machinery. Now After 10 Years Of Activity TOPALL is Well Known in 5 Countries of European Community, Africa, South America, Meddle East and Far East Exporting 80% of His Production.
In Constant Evolution Towards New Standards Of Quality, We Have Obtained EN ISO 9001:2008 Certification (December 2013)And CE Certification.
The Secret Of This Important Presence Abroad is : Quality, Experience And Very Strong Export Managers. For The Future We Foresee a Big Development of Our Sales in The Meddle East and Africa Countries Because We Produce the Right Machines for The Developement Of These Countries

Our Production Is Articulated As Follows:
Machinery to Produce Concrete: Truck Mixers, Reversing Drum Mixers And Tilting Drum Mixers, Concrete Batching Plant, Mobile Self Loading Mixer Truck, Transit Mixer Truck.,
Machinery to Transport Concrete : Dumpers, Dumpers with Shovel, Wheel Loader ,Skid Loader
Machinery to Product Block: Egg Laying Machine ,Stationary Block Moulding Machine ;Tower Crane, Site Lifter, Building Hoist, Concrete Pump.
Machinery to Work Iron Bars:Steel Bar Cutter; Steel Bar Bender And Compacting Machine
With Large Production Of Different Kind Of Machinery We Are Able to Satisfy All Need of a Modern Contractor.
Our advantage as list:
1.Price is cheap: we manufacture and export flooring by us
2.Quality is good: we control each produce process, we could control quality in good way
3.Timely delivery and Various of Design
4.Service is good: Professional team supply service, all of them know produce and technical and market
