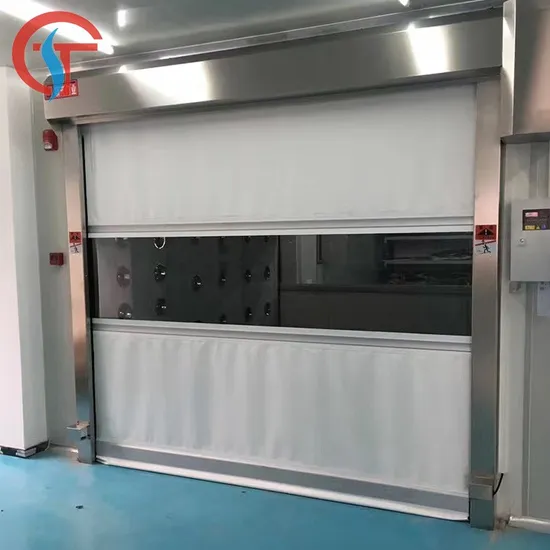

Industrial PVC Rapid Roll Door/Fast Automatic Rolling Shutter Door (ST-001)
| US$1,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ST-001
Open Style
Rolling
Opening Type
With Remote Control
Special Function
High Performance
Color
Red
Certification
ISO9001
Position
Industrial
Surface Finishing
Finished
Size
to Your Order
Curtain Thickness
0.8mm/1.5mm
Motor Brand
German Sew
Control Panel
Japan Mitsubishi
Curtain Color
Red/Green/Blue/Yellow/White/Orange/Grey
Transport Package
Plywood Case
Specification
To be Confirm
Trademark
ST
Origin
China
Production Capacity
300sets/Month
Product Description
Rapid Open Door Product DescriptionShuotian high speed doors are designed for fast open and close, allowing people and/or equipment to move quickly through the opening. This type of doors is ideal for large size opening and designed for high performance daily use both internally and externally with minimal maintenance. The door operated as speed > 1m/s, this model doors offers beneficial energy saving in both commercial and industrial application. In additional it reduces noise and dust from nearby working areas. It was ideally choice for many commercial and industrial application..
Specification Sheet:
| Control System | Japan Mitsubishi Inveter, PLC and other components.(China unit: Servo/ Holip) | ||
| Dynamical Systems | Motor: SEW or Nord from Germany Factory.(China unit: SEJ/SERVO system) | ||
| Most stable brake system or Advanced Servo System, 220V~380V/50 -60HZ | |||
| Power: 0.75kw ~ 3.0kw(According to the size of door) | |||
| Fast Speed Gate Construction | |||
| Framework | In 2mm thickness cold-roll steel sheet or on request in Stainless steel INOX201/304, Plaint color accordingly to your order | ||
| Rolling Drum | 2mm thickness steel/Galvanized rube with machined blacks at each side and incorporating high-speed bearing. | ||
| Cross Bar | Normal in aluminum rod for small doors. Additional with Steel pipe for large opening and high-wind application. | ||
| Color | Red/Yellow/Blue/Sky blue/Orange/Mesh white and yellow/White/Green/Black/Grey. | ||
| Transparent Window | Transparent pvc sheet 1.5mm thickness. Window sizes and loaction accordingly to your requirement. | ||
| Command System | Magnetic Loop/Radar Sensor/Rope switch/Remote Control/Finger printer/Bluetooth/Key card etc. | ||
| Safety System & Seal | |||
| Photocell Sensor | Installed ont he side track with emergency rebound opening when sensing obstacles. | ||
| Safety edge bottom | When the people or vehicle touch the bottom edge of closing doors, It bound up automaticlly. | ||
| Emergency stop protection | With emergency stop button on the main control board. | ||
| Seal | Seal brush are installed inside of guider rail. Besides there is trap heavier fabric on the bottom, Close to any uneven ground. | ||
| Technical Parameter | Power Supply: Single or Three phase 220V~260V.. Three phase 380V~460V. 50/60HZ. | ||
| Max Size: 10m width * 15m height | |||
| Opening & Colsing speed: 0.7~1.5m/S | |||
| Operation Frequency: 1000~1500 Cycles/Day | |||
| Wind load: 15m/S | |||
Motor and Control Box:
Curtain Color and Detail drawing:
