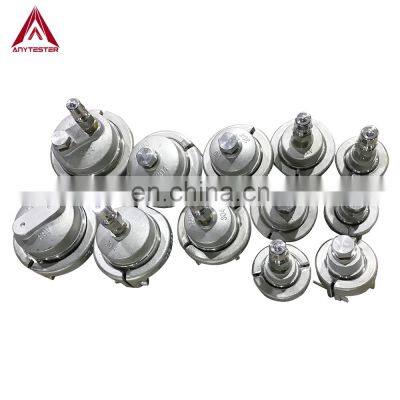

From DN16mm To DN2000mm Plastic Pipe End Caps

Product Description

Product Description
Product DescriptionThis End Cap is used to seal pipes which will run test for hydro-static pressure tester.Futures★ Different diameter can be selected according to customers’ requirement★ DN10 ~ DN800 end cap adopt casting method and DN900 ~ DN1600 adopt machinery method★ Modular structure design, easy to operate and no need special tool, and also if any parts broken, it can be replaced easy.★ Oval sharp design to protect the water tank from impact.★ It can match with most supplier’s water tank and hydrostatic pressure testing machine★ Two type for selectionSpecificationEnd capSpecificationD10~D1600StructurePan structureSealing ringO-ringConversion connectorPT1/4, internal thread, stainless steel materialEnd closures connectorM12*1.25, internal threadPressure range D16~D110mm0~10MPa (20MPa max. For D16/20/25 ) Φ125~Φ630mm0~5MPaMaterial304 Stainless steel, 201 stainless steel, carbon steelEnd Cap Wall thicknessDN10 ~ DN3556mmDN400 ~ DN7108mmDN800 ~ DN160010mm DN Size(mm) Max. Outside(mm) Seal Length(mm) O ring(mm) Single end cap weight (kg) Total length with pipe (mm) Standard pressure (MPa) Max. Pressure(MPa) 10 33 30 Φ10*3.1 0.4 300 12 20 16 33 30 Φ16*3.1 0.4 350 12 20 18 36 30 Φ18*3.55 0.4 350 12 20 20 38 40 Φ30*3.55 0.5 35 12 20 25 43 40 Φ25*3.55 0.5 35 12 20 32 50 40 Φ32*3.55 0.7 460 10 14 40 77 40 Φ40*3.55 0.76 460 10 14 50 87 43 Φ50*3.55 0.9 475 10 14 63 100 45 Φ63*3.55 1.1 500 10 14 75 125 52 Φ75*5.3 2.2 550 10 14 90 145 60 Φ90*5.3 3.3 580 10 14 110 172 68 Φ110*5.3 5.0 600 8 11 125 190 78 Φ125*5.3 7.1 720 8 11 140 212 80 Φ140*7 9 780 8 11 160 236 97 Φ160*8 11 860 8 11 180 256 98 Φ180*8 14.7 935 8 11 200 283 105 Φ200*10 17 960 8 11 250 410 130 Φ250*12 27 1230 6 9 315 480 153 Φ315*12 38 1560 6 9 355 545 170 Φ355*16 45 1620 5 8 400 600 175 Φ400*16 50 1650 5 8 450 695 175 Φ450*16 90 1680 5 8 500 764 215 Φ500*20 95 1700 5 8 560 765 215 Φ560*20 130 1710 5 8 630 830 220 Φ630*20 150 1820 5 8 710 940 200 Φ710*25 170 1940 4 6 800 1080 250 Φ800*25 199 2150 3 4 900 1180 255 Φ900*28 243 2200 1.5 2.5 1000 1280 260 Φ1000*28 273 2300 1.5 2.0 1200 1500 260 Φ1200*30 313 2408 1.5 2.0 1600 2200 300 Φ1600*30 476 2480 1.2 1.8Related ProductsOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productContacting Us Lily ChengWebsiteMobile Phone+86 180 5517 3820Whatsapp+86 180 5517 3820Skype1933039910@qq.comWechat+86 180 5517 3820
