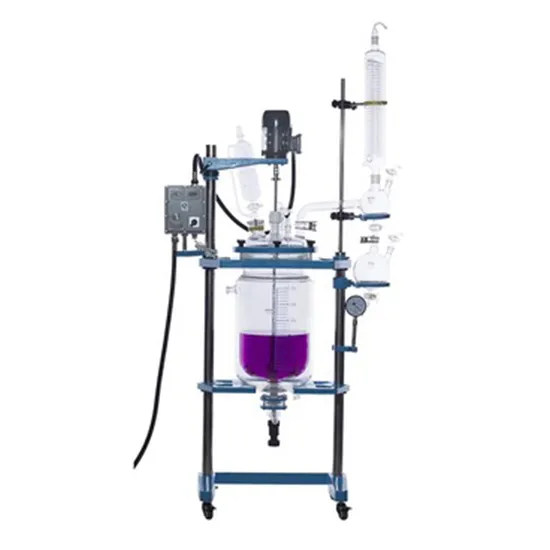

Jacket Types Glass Reactor Hydrolysis Kettle

Product Description

Double glass reactor double glass design, inner into reaction menstruum do stirring reaction, interlayer can pass different
cold sources (cryoprotectants, hot water or hot oil) do cycle heating or cooling reaction. Setting thermostat conditions, in
confined glass reactor, can use require atmospheric or negative pressure conditions conducted stirring response and do
reaction solution reflux and distillation is modern Fine Chemical Factory, biopharmaceuticals and new materials synthesized
ideal test production equipment.

Model	S212-10L	S212-20L	S212-30L	S212-50L
Glass material	GG-17
Frame material	Stainless Steel
Pipe fitting material	304 Stainless Steel
Move method	Universal castors with braking
Reaction flask volume	10L	20L	30L	50L
Interlayer volume	6L	8L	10L	12L
Number of reactor bottle	6
Discharge outlet liftoff height	450mm
Reactor reaction temperature	-80-250 degree
Vacuum degree	0.098Mpa
Stirring speed	0-450rpm
Stirring diameter of axis	12mm
Stirring power	90W		120W
Voltage/Frequency(V/Hz)	220V/50HZ
Package weight(KG)	68	80	88	92
Sealing mode	PTFE sealing, ¢50 flange stirring mouth

1. Constant rotate speed, no electric brush, no spark, safe and stable, enable continuous working.
2. Full set of glass part is produced by G3.3 borosilicate glass, owns excellent chemical and physical properties.
3. When glass interlayer connecting to hot oil and been circulated, it can do heating reaction, connecting to refrigerating
fluid can do low temperature reaction.
4. Enable reaction under normal temperature, that is connecting to tap water can take away the reaction heat quickly.
5. Discharge outlet has flange mouth and PTFE valve, there has no dead angle in vessel, detachable and convenient for
solid material to discharge.
6. Main body is made from stainless steel, which is beautiful and anti-corrosion.
7. Sealed by PTFE component, be able to maintain higher vacuum degree.
8. Be able to work under normal and negative pressure, negative pressure up to -0.098MPa.
9. Alternating current dynamo conducts frequency control stirring, reliable operation, large moment of force and no spark.
10. The inner core of stirring rod is made from 321 stainless steel, strengthened anti-corrosion property, military technology
makes workmanship more exquisite, operation with high proficiency.
