Single/Double Stage Plastic Film Water Cooling Recycling Granulating Machine for HDPE LDPE PVC Waste Film

Product Description

Product Description

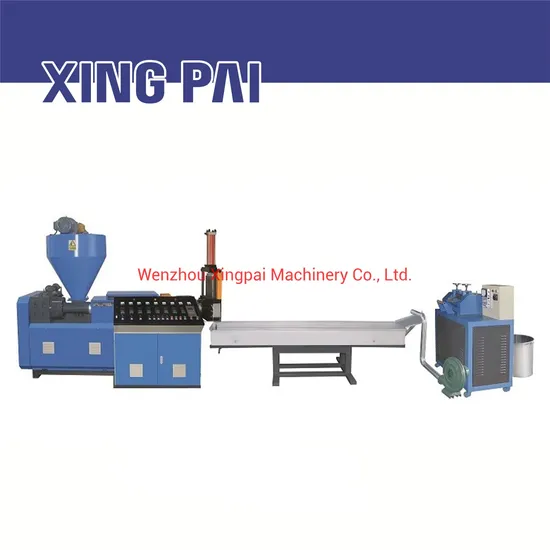

Single Stage Waste Plastics Recycling Machine
Performance and Characteristics
This machine is suitable for regeneration and granulation of waste plastics,as HDPE,LDPE,and PP,ABS,etc .NO PET.PS
.It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control.The granulating crusher uses adjustable speed synchronistically.The unit is easy to opera
te,with a high output,steady performance,and favorable economic benefit.
Product Parameters

Model	SJ-90B	SJ-100B		SJ-110B		SJ-120B
Diameter of Screw Stem	90mm	100mm		110mm		120mm
L:D	20:1	20:1		20:1		20:1
Speed of Screw	10-110rpm	10-110rpm		10-110rpm		10-110rpm
Gearbox	173	173		180		200
Motor Power	22kw	30kw		30kw		37kw
Output	70kg/h	90kg/h		120kg/h		135kg/h
Water Tank Length)	2500mm Stainless
Screen changer	Hydraulic for both screw
Screen changer hole	6mm
Die head hole(Alloy Metal)	4mm
Cutter Knife	Hobbing Cutter
Cutter Motor	2.2kw		2.2kw	3kw	3kw
Machine Weight	1800kg		2000kg	2200kg	2500kg
Overail Dimensions	5.5*1.5*1.1m		5.9*1.3*1.2m	6*1.35*1.3m	6.2*1.4*1.3m

Detailed Photos
workshop picture
Group picture with customer

Packaging & Shipping

FAQ
FAQ
1.:Are you factory or trading company ?
we are factory specialized in plastic machine for many years ,all of our engineer with more than 20 years experience .
2. Where is your factory? How can i visit your company?
our factory is located in Ruian city,zhejiang province, China.
Its about 40 minutes from shanghai by plane(4 hours by train).we will pick you up on airport or station .welcome to visit our factory
3 How long is your delivery time?
On normal our delivery time is 30-45 days .if you need it ugently ,we can make your machine first.about 10 days
4.:What's your warranty policy?
18 month guarantee and whole life maintance ,

5:What package do you use for the product?
Be Coated with anti-corrosion oil, and covered with plastic film, wooden box package need extra cost .

6:Does your factory provide installation service?
Our engineer can go to customer factory to installation . buyer should prepare materials used to testing the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary 100USD/Day per person since the day start out until the day arriving at factory.
7:What are your terms of payment?
We accept T/T, L/C. western union.
8. How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
9: Does your engineer understand English?
A: Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
