Ultra-Thin Lightweight LED Crystal Film Screen Transparent Flexible LED Display

Product Description

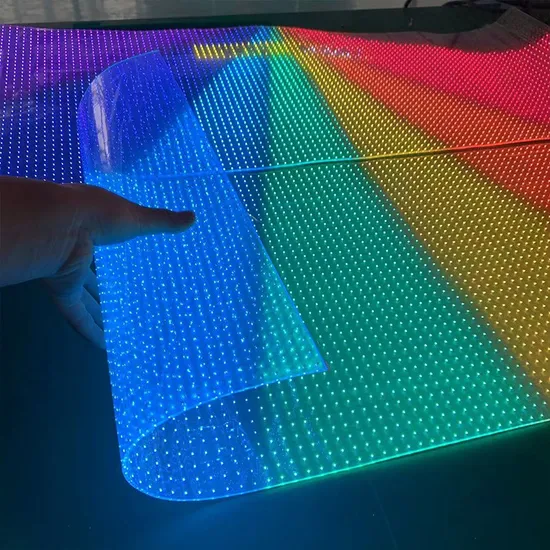

Product Description Flexible LED film is a transparent and ultra-thin LED screen made with new technology. It has two main features: flexibility and transparency. Can be used in various places with clear glass, just stick it on and it's ready to use.
Product Features:
(1) Waterproof, dustproof, and impact-proof;
(2) 60%-90% transparency, no impact on lighting;
(3) Lightweight, simple structure, can be directly pasted on glass;
(4) Energy-saving and environmentally friendly.
Module Size:
(1) 990mm*390mm
(2)1000mm*320mm
(3)1000mm*400mm
Product Parameters

Model	P5	P6.25	P8	P10	P15	P20
Pixel Structure	SMD1515	SMD1515/2121	SMD1515/2121	SMD1515/2121	SMD2121	SMD2121
Pixel Pitch	5-5mm	6.25-6.25mm	8-8mm	10-10mm	15-15mm	20-20mm
Module Resolution	200*64	160*64	125*50	100*40	66*26	50*20
Module Size	1000mm*320mm	1000mm*400mm	1000mm*400mm	1000mm*400mm	990mm*390mm	1000mm*400mm
Module Weight	≤1.3kg	≤1.3kg	≤1.3kg	≤1.3kg	≤1.3kg	≤1.3kg
Transparency	≥85%	≥90%	≥92%	≥94%	≥94%	≥95%
Pixel Density	40000dots/m2	25600dots/m2	15625dots/m2	10000dots/m2	4356dots/m2	2500dots/m2
Brightness	2000/4000nit	2000/4000nit	2000/4000nit	2000/4000nit	2000/4000nit	2000/4000nit
Thickness	2.5mm	2.5mm	2.5mm	2.5mm	2.5mm	2.5mm
Horizontal Viewing Angle	160°	160°	160°	160°	160°	160°
Vertical Viewing Angle	160°	160°	160°	160°	160°	160°
Contrast Ratio	5000∶1	5000∶1	5000∶1	5000∶1	5000∶1	5000∶1
Max Power Consumption	≤600W/m2	≤600W/m2	≤600W/m2	≤600W/m2	≤600W/m2	≤600W/m2
Average Power Consumption	≤200W/m2	≤200W/m2	≤200W/m2	≤200W/m2	≤200W/m2	≤200W/m2
Input Voltage	110-240V AC 50-60Hz	110-240V AC 50-60Hz	110-240V AC 50-60Hz	110-240V AC 50-60Hz	110-240V AC 50-60Hz	110-240V AC 50-60Hz
Drive Mode	Constant current drive	Constant current drive	Constant current drive	Constant current drive	Constant current drive	Constant current drive
Frame Frequency	50&60Hz	50&60Hz	50&60Hz	50&60Hz	50&60Hz	50&60Hz
Refresh Rate	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
Theoretical Lifespan	100000hours	100000hours	100000hours	100000hours	100000hours	100000hours
Grayscale	16bit	16bit	16bit	16bit	16bit	16bit
Working Temperature Range	-10ºC~40ºC	-10ºC~40ºC	-10ºC~40ºC	-10ºC~40ºC	-10ºC~40ºC	-10ºC~40ºC
Storage Temperature Range	-20ºC~60ºC	-20ºC~60ºC	-20ºC~60ºC	-20ºC~60ºC	-20ºC~60ºC	-20ºC~60ºC
Working Humidity Range	10 -- 80%RH	10 -- 80%RH	10 -- 80%RH	10 -- 80%RH	10 -- 80%RH	10 -- 80%RH
Storage Humidity Range	10 -- 85%RH	10 -- 85%RH	10 -- 85%RH	10 -- 85%RH	10 -- 85%RH	10 -- 85%RH

Project Cases1. Dynamic Billboards: Flexible LED films can be used for large-scale, curved, or irregular-shaped digital billboards.
2. Storefront Displays: Retail stores can use flexible LED films for window displays that attract customers with dynamic content.3.Customizable Store Layouts: Use in stores to create adaptable displays that can be easily changed to match seasons, promotions, or product lines Company Profile
FAQFAQs:
Question 1: How is your company doing in terms of quality control?
Answer 1: We attach great importance to quality control from beginning to end. We focus on every detail. Our LED display products have ISO9001, 3C, CE, RoHS, FCC certification.
Question 2: What is the lifespan of an LED display?
Answer 2: LED displays typically have a lifespan of 100,000 hours, depending on the quality of the components and usage conditions.
Question 2: How is your company doing in terms of quality control?
Answer 2: We attach great importance to quality control from beginning to end. We focus on every detail. Our LED display products have ISO9001, 3C, CE, RoHS, FCC certification.
Question 3: What is your minimum order quantity?
Answer 3: Your order can accept any quantity. And the price for
large quantities can be negotiated.
Question 4: When will you deliver?
Answer 4: According to the size and quantity of your order, we can deliver the finished led screen within 10-20 days.
Question 5: How long is the warranty period?
Answer 5: The standard warranty period is 1 year. Depending on the requirements, the time may be longer.
Question 6: Do you provide free spare parts in every order?
Answer 6: Yes, a certain number of spare parts will be provided free of charge, including modules, power lines, signal lines, LED lights, IC, masks, power supplies, receiving cards, etc.
Question 7: Are LED displays energy efficient?
Answer 7: Yes, LED displays are highly energy-efficient, consuming less power than traditional display technologies while providing brighter and more vivid images.
Question 8: How is the resolution of an LED display determined?
Answer 8: The resolution of an LED display is determined by the pixel pitch, which is the distance between the centers of two adjacent pixels. Smaller pixel pitch results in higher resolution and clearer images.
