2024 New Style Ahd Fiberglass Cable Sewer Pipeline Borehole Inspection Camera System
Basic Info.
Model NO.
V10-3288
Type
CCTV Camera
Sensor
CMOS
HDMI Format
720P
Horizontal Resolution
420tvl
Kind
Industrial Inspection
Certification
CE, FCC, RoHS
Feature
Waterproof / Weatherproof, High Definition
Effective Distance
≧30m
Sensor Size
1/3 inch
Remote Control
With Remote Control
Total Package
68.5*59*35cm&47*20*41cm
Total Weight
68+10kgs
Function
Sewer Inspection,Reset, Wide Angle, Waterproof
Waterproof
IP68
Transport Package
Aluminum Carrying Case and Carton Box
Specification
1set/2cartons, 83*41*91cm&47*20*41cm
Trademark
Vicam
Origin
China
HS Code
8525803100
Production Capacity
5000set/M
Packaging & Delivery
Package Size
69.00cm * 59.00cm * 66.00cm
Package Gross Weight
80.000kg
Product Description

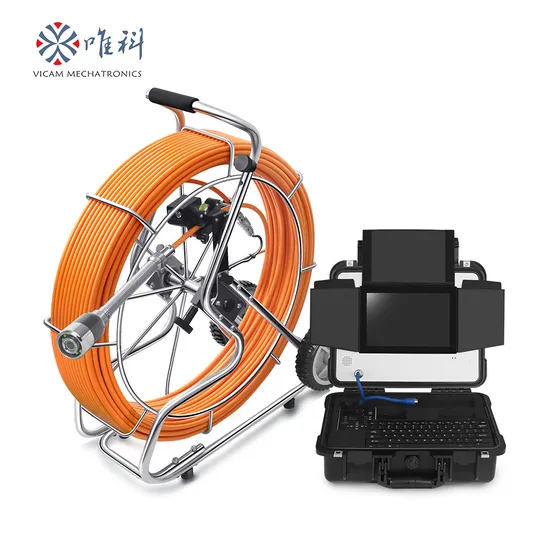

Vicam HD 40mm Self leveling Pipe Inpsection Camera with 512hz sonde ,10inch control box, meter counter functionV10-3388 60m 7mm fiberglass cable Push Rod sewer camera
Product Description
| 1.40mm self-leveling image waterproof camera head |
| 2. 8pcs LED light, IP68 waterproof |
| 3. 1/3 CMOS,1.3MP pixel AHD camera head |
| 4. 10 inch IPS lcd screen, 1280*720 resolution |
| 5. USB keyboard to typewrite the words |
| 6. DVR control box with audio, video recording and photography function |
| 7. Digital meter counter function, error is less than 1% |
| 8. 16G flash disk storage device , easily transfer the video file to computer |
| 9. Camera video resolution is 720P |
| 10. Camera skid included(Dia.75mm and dia.135mm) |
| 11. One year warranty for complete equipment |
| 1. Camera size Ø40mm x 60mm, sensor 1/3" CMOS, 1.3MP pixel, with transmitter 2. Waterproof IP68 3. View range 90 degree 4. 12pcs high light LED lighting adjustable 5. Lens window sapphire glass 6. Camera skids: 2 kinds different size skids( Dia.85mm/Dia.220mm) 7. Camera housing stainess steel |
Main Part 2: Cable Reel
| 1. Dia.7mm fiberglass cable 2. Handle reel with meter counter device 3.Meter counter ( Feet / Meter switch) 4. Digital meter counter function, error is less than 1% 5. Cable Brake |
Main Part 3: AHD DVR Control Unit
| | 1. 10"HD IPS LCD Screen, 1280X720 resolution 2. DVR control box with video ,audio recording,take photo function 3. USB Keyboard real time typewriting 4. USB port to connect storage device ( 16G USB flash disk) 5. HD DVR SYSTEM with recording 720P video 6. 8800mA rechargeable Li-ion Battery Pack 7. Battery level indicator 8. Box size is 42x31x13cm |
10"HD IPS LCD monitor
| *Pixels:1280X720 *Display 4:3 *language:English/Chinese/French/Spanish/Polish *Sun shield and remote control included |
Standard Camera Skids
| *Material:Plastic *Min Diameter:85mm *Max Diameter:220mm |
Packing List
| 1 | 40mm camera head | 1pcs |
| 2 | 60m/80m 7mm cable reel | 1pcs |
| 3 | DVR control box with remote controller | 1pcs |
| 4 | Video link cable | 1pcs |
| 5 | Meter counter link cable | 1pcs |
| 6 | Charger adptor | 1pcs |
| 7 | 16G USB flash disk | 1pcs |
| 8 | Seal ring | 2pcs |
| 9 | Earphone | 1pcs |
| 10 | Standard Camera skid | 1set |
| 11 | User manual 1pcs | 1pcs |
