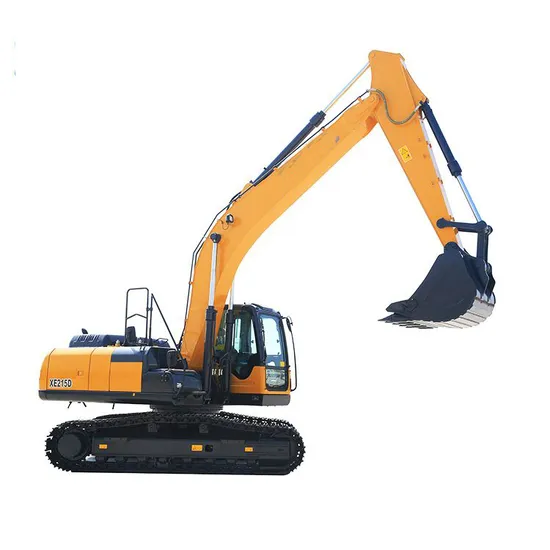

Excavator 1 Cubic /Backhoe/Crawler Excavator/Wheel Excavator/Model Xe215c/Xe215D
| US$70,000.00-90,000.00 | 1 unit (MOQ) |
Basic Info.
Model NO.
XE215C/XE215D
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
0.5~1.0m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Operating Weight
22000kgs
Transport Package
Nude Packing Suitable for Shipping
Specification
9525*2990*3000MM
Trademark
silkway
Origin
China
HS Code
84295212
Packaging & Delivery
Package Size
9525.00cm * 2990.00cm * 3000.00cm
Package Gross Weight
215000.000kg
Product Description
1. Original imported engineAn Imported Isuz engine that provides powerful performance and low fuel consumption. The overall system is optimised to provide a comprehensive performance upgrade.
2. Latest fuel filter
The latest fuel filer improves filtration and ensures oil inlet quality, thus improving the reliability of the machine under harsh operating conditions.
3. Hydraulic system
Original imported high-end hydraulic components are configured to match capabilities for excellent performance.
4. Structure
Finite element analysis is used in the structural design to strengthen key components so that they can withstand greater stress. This ensures that the machine stays durable under different harsh operating conditions.
5. Optional match
Optional tools include a breaker, a cold temperature activation device, and falling object protection, all to increase the capabilities of the machine.
SPECIFICATIONS:
| Engine | Model | ISUZ CC-6BG1TRP |
| Equipped | Electronic fuel injection | |
| Four strokes | ||
| Water cooling | ||
| Turbo-charging | ||
| Air to air intercooler | ||
| No. of cylinders | 6 | |
| Output power | 128.5/2100 kW/rpm | |
| Torque/speed | 637/1800 N.m/rpm | |
| Displacement | 6.494 L | |
| Operation Weight | 21700 kg | |
| Bucket Capacity | 0.9-1.0 m ³ | |
| Main performance | Travel speed(H/L) | 5.5/3.3 km/h |
| Rotating speed | 13.3 r/min | |
| Gradeability | ≤35° | |
| Ground pressure | 47.2 kPa | |
| Bucket digging force | 149 kN | |
| Arm digging force | 111 kN | |
| Maximum traction | 184 kN | |
| Working scope | Max. digging height | 9620 mm |
| Max. dumping height | 6780 mm | |
| Max. digging depth | 6680 mm | |
| Excavation depth of 8 feet level | 6500 mm | |
| Max. vertical wall digging depth | 5715 mm | |
| Max. digging reach | 9940 mm | |
| Min. swing radius | 3530 mm | |
