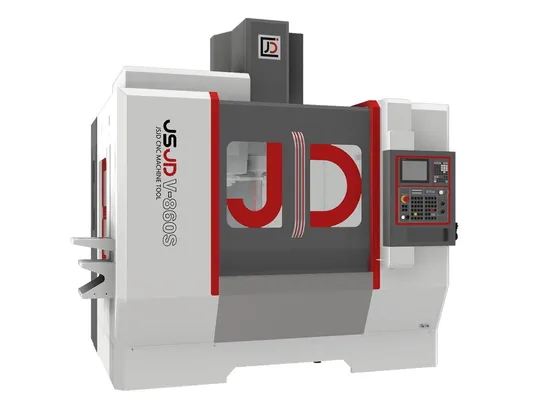

High Efficiency 3 Axis Vertical Machining Center V-860s Metal China CNC Machine

Product Description

Product Description
Ultra-high performance machining centre
1 Adopting Taiwan disc tool magazine, the tool change time is shortened to 1.4S, which effectively improves the product processing efficiency.
2 Z-axis is equipped with 3KW motor as standard, which is one level larger servo motor than the same model of other brands, with large torque output, fast and accurate positioning.
3 spindle motor configuration 11Kw high torque motor, spindle torque compared with other brands of equivalent models significantly increased, very suitable for heavy cutting.
4 Machine parts belong to famous brand, top configuration in the industry.

Product Parameters

Item		Unit	V-860S
Travel	X axis	mm	820
	Y axis	mm	560
	Z axis	mm	570
Controller	System	-	Fanuc:Oi-MF/Siemens/Syntec:220MA/Mitsubishi:M80
	Total axes	-	3
Accuracy	Positioning accuracy	mm	±0.005/300
	Repositioning accuracy	mm	±0.003/300
Spindle	Spindle taper	-	BBT40-ø150
	Spindle speed	rpm	12000
	Spindle drive type	-	direct
	Spindle center to column	mm	630
	Spindle end face to work table	mm	120-690
Table	Table size	mm	1000×550
	Table load	kg	800
	T-slots	mm	5-18×90
Guide rail	X/Y/Z axis ball screw	mm	4016/4016/4016
	X/Y/Z axis guide rail type	-	linear
Tool magazine	Number of tools	T	24
	Tool length/weight	-	300mm/8kg
	Tool diameter (full/adjacent empty)	mm	ø80-ø150
Motor power	Spindle motor	kw	7.5/11
	X/Y/Z axis servo motor	kw	3/3/3
	Coolant pump motor	w	750
Feed	Rapid feed	m/min	36/36/36
	Cutting feed	m/min	10/10/10
Others	Power	kva	25
	Air pressure	kg/cm2	6
	Dimensions	mm	2950×3170×2920
	Weight	T	6.3

Standard configuration: -BBT-40 direct spindle 12000rpm -Disc type tool magazine(BT40-24T) -Fully Enclosed Shield -Spindle oil cooler -Industrial refrigeration and air conditioning -Rigid Tapping -Foundation pads and adjusting bolts -Separate electronic handwheel -LED work light -LED three-color warning light -Automatic lubrication system -Tool Cutting Cooling System -Automatic chip flushing function -Ethernet, CF card and USB interfaces -Cleaning water gun -High pressure air gun -Tool box -User manuals -Control circuit information
-Chain chip conveyor Optional configuration: -BBT40 direct spindle 10000/15000rpm
-HSK A63 18000/20000rpm motorized spindle
-BT40 blet spindle 8000rpm
-4/5 axis rotary table
-Fixture
-Chain Chip Conveyor
-Tool checking instrument -Triaxial grating ruler -High pressure spindle center outlet system -Workpiece measuring system -Oil mist recovery system -Oil-water separator
-Hydraulic station More products

Specification	Unit	V-640S	V-850	V-855	V-860S	V-1160	V-1170S	V-1380	V-1580
Three-axis travel (X/Y/Z)	mm	600/430/440	800/500/500	820/550/550	820/560/570	1100/600/600	1100/700/700	1300/700/735	1500/800/750
Table size	mm	700×420	1000×500	1000×550	1000×550	1200×600	1200×600	1500×800	1700×800
Table load	kg	250	600	800	800	1000	1000	1500	1500
T-slots	mm	3-14×125	5-18×100	5-18×90	5-18×90	5-18×100	5-18×100	5-18×145	5-18×145
System		Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi
Spindle speed	rpm	12000	10000 12000 15000	10000 12000 15000	10000 12000 15000	10000 12000 15000	10000 12000 15000	8000 10000 12000	8000 10000 12000
Spindle taper		BT40	BBT40	BBT40	BBT40	BBT40	BBT40	BBT40/BT50	BBT40/BT50
Spindle center to column	mm	467	570	560	630	660	717	866	871
Spindle end face to work table	mm	130-570	120-620	120-670	120-690	120-720	130-830	145-880	150-900
Spindle motor power	kw	7.5	7.5/11	7.5/11	7.5/11	11	11	11/15	11/18
Rapid feed	m/min	48/48/48	48/48/48	36/36/36	36/36/36	36/36/36	36/36/36	16/16/16	16/16/16
Cutting feed	m/min	10/10/10	10/10/10	10/10/10	10/10/10	10/10/10	10/10/10	10/10/10	10/10/10
Positioning accuracy	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Repositioning accuracy	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300

Company Profile
Dongguan Jieshang Jiangde CNC Machine Tool Co., Ltd. is a professional committed to CNC machine tool research and development, design, manufacturing, sales and service of high-tech company. Our products have passed the CE safety certification, ISO9001 quality system certification and ISO environmental management system certification, and in the hardware, mold, automobile, electronic communications, IT, aerospace, new energy and other fields to achieve good results.
Adhering to the spirit of craftsman, customer first business philosophy, focus on every link of production, improve the overall performance, provide reasonable price, good quality products, sustainable operation, continue to create value for customers.
Always pursuing the principle of service first, we continue to improve the service system and service quality, and through the establishment of service network and complete parts supply system, to provide excellent pre-sale, sale, after-sales service, for customer equipment escort.
Efforts to innovate, the accumulation of CNC machining center machine research and development and manufacturing technology experience, actively expand the business territory, dedicated to provide customers with professional technical support services, permanent management.
FAQ
Q1:What's your main products of your company?
A1:We manufacture all kinds of CNC machine tools ,such as Vertical Machine Center, Horizontal Machine Center, 5 axis Machine Center, Gantry Machine Center, Engraving Machine Center.
Q2:How can I choose the most suitable machines ?
A2:If you are the factory, please tell us your specification request or workpiece drawing, we will suggest the suitable model for you.
If you are the trading company, please tell us your customer's request or we can introduce various models of our company.
Q3:Where is our factory located? Can I visit there?
A3:Our factory is located in Dongguan City, Guangdong Province, China. You are warmly welcome to visit us.
Q4:How is the warranty?
A4:One year.We will do our best to serviced.
Q5:How long is the delivery time for our products?
A5:Twenty days to one month.
Q6:How about your quality?
A6:We have approved the ISO9001:2015 Quality management system and CE European safety standards. Our products are exported to Russia, Vietnam and other countries.
Q7:What is the package?
A7:The machine is by waterproof cloth to covered. And a packed by standard exported wooden case. It is very safety for oversea transportation.
Q8:What's the Payment Terms ?
A8:T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC. Other way can discuss according to different situation.
