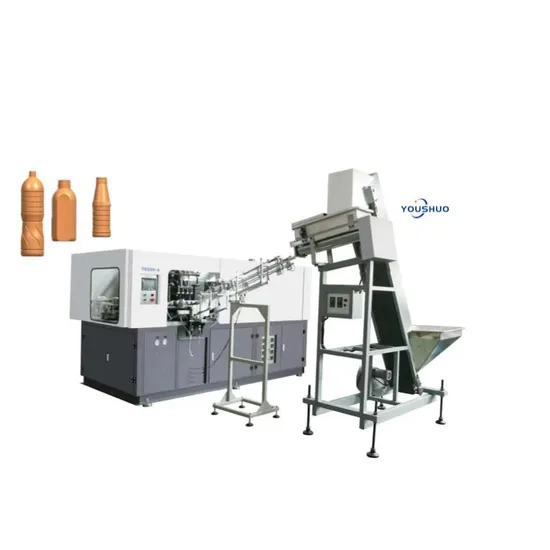

Plastic Automatic Bottle Blowing Machine Blow Molding Machine From 50ml to 600ml

Product Description

Product Description
this is full automatic bottle blowing machine for max 600ml bottle.
this machine is suitable for blowing PET bottles between 50ml and 600ml.
Our machine production process is stable, energy-saving, and has a long service life.
These bottle blowing machines also have 2, 4, 6 and 8 cavities.
Product Parameters

Type	Item	Unit	Technology Data
Main Machine	Max. Volume of Product	L	600ml
	Theoretical Productive Capacity	pcs/hr	4000
	Neck size of product	mm	40
	Max. Bottle Diameter	mm	68
	Max. Bottle Height	mm	250
	Mold center	mm	75
	Working Pressure	bar	10
	Working air consumption	M3/min	1.6
	Blowing Pressure	bar	30
	Blowing air consumption	M3/min	2.5
	Weight of Main Machine	KG	2700
	Dimension of Main machine	M	3.9*1.6*2
Loader	Weight of Loader	KG	250
	Dimension of Infrared Heater	M	2.4*1.1*2.4
Electricity	Voltage/Frequency	V	380
	Total Power	KW	66
	Power	KW	15-20
Note: Due to continual improvement, specifications are subject to change without notification. Please refer to the latest actual machine.

Detailed Photos
The integrated oven design is more energy-efficient, and the lamp tube is designed for quick adjustment. Machine features
1. Our machine has fine workmanship, stable production, energy saving, and long service life. Machines that are over 10 years old still have customers in normal production.
2. From pre installation to bottle blowing, achieve fully automated operation.
3. The oven has a unique design that ensures even baking and energy efficiency.
4. The touch screen human-machine interaction interface is easy and fast to operate.
5. Automatic fault alarm system, which automatically switches to safe mode when a fault occurs, effectively protecting the machine.
6. Manufacture personalized high-end customized machines according to the actual needs of customers. Make machines more intelligent.For example, adding a high-pressure recovery system configuration can save more than 25% of high-pressure compressed gas. Add PLC temperature control system, independent temperature control system, etc.

Packaging & Shipping
Company Profile
TAIZHOU YOUSHUO CO., LTD. mainly produces and sells blow molding machines, extrusion blow molding machines, auxiliary machines, and molds. We provide customers with complete packaging bottle production line services.
Our company's blow molding machine is suitable for producing PET, PP and other plastic bottles. These plastic bottles are widely used in packaging industries such as pharmaceuticals, cosmetics, nuts, mineral water, beverages, oils, detergents, beverages, and food. Our company's bottle blowing machine can produce various bottles ranging from 5ml to 25000ml.
Our company's extrusion blow molding machine can produce hollow plastic products ranging from 50ml to 120L for you. Coverage industries: petrochemical, pharmaceutical packaging, food packaging, cosmetics packaging, automotive, sports, hardware tools and other industries. Applicable raw materials: PE PP,PETG,PS,ABS,EVA····
Our fully electric blow molding machine has reached the leading level in the industry, and our products are exported to more than 50 countries abroad. We have received very positive feedback from our clients over the course of more than 10 years of cooperation. The stability and durability have been unanimously recognized by customers.

After Sales Service
Customers can choose free online guidance services, or can choose our company to send engineers to your factory for debugging services, which is chargeable. Customers can also choose to send their own workers to our factory for free learning.

FAQ
Q: Where is your factory located?
A: Our factory is located in Taizhou, China
Q: What are your trade terms?
A: Usually FOB Ningbo price. If the customer has a request, a partial sight letter of credit can be issued
Q: What are your payment terms?
A: After order confirmation, pay a down payment of 30% to 50%, the advance payment is related to the customer's project. Pay the full balance before shipment.
Q: What is your delivery time?
A: Usually within 30-60 days, depending on your project.
Q: How do customers install the goods after receiving them?
A: Customers can choose free online guidance services, or can choose our company to send engineers to your factory for debugging services, which is chargeable. Customers can also choose to send their own workers to our factory for free learning.
Q: Guaranteed time?
A: One year warranty, not man made.
