HDPE Pipe Machine / PE Pipe Production Line / Hdpepipe Extrusion Machine

Product Description

160-450mm pe plastic irrigation pipe making machine / Plastic Machinery / HDPE Pipe Extrusion Machine
160-450mm PE Pipe Extrusion machine is mainly used for producing gas supplying pipe, water supplying pipe, cable protection pipe etc. The pipe has some excellent features such as low temperature impact resistance, reliable connection, good stress crack resistance, good chemical resistance, good wear resistance, long using life, etc. our extrusion line is designed with high efficiency extruder and equipped with reducer which is high speed and low noise, Gravimetric dosing unit and ultrasonic thickness indicator can be assembled according to customer's demand to ascend the precise of the pipes . Turn key solution can be provided, like laser printer crusher, shredder, water chiller, air compressor etc. to achieve high-grade and automatic tube production. Product Description
Working process (It can produce 20-630mm hdpe pipe )
Raw material +master batches → mixing → vacuum feeder→ material dryer → single screw extruder ( small CO-extruder ) → mould → vacuum calibration tank → spray cooling tank ( water tank) → haul-off unit → cutting machine→ stacker
Application of HDPE pipes
1. Municipal water supply, gas supply and agriculture etc.
2. Commercial & Residential water supply
3. Industrial liquids transportation
4. Sewage treatment
5. Food and chemical industry
7. Replacement of cement pipes and steel pipes
8. Argillaceous silt, mud transportation
9. Garden green pipe networks
Product Parameters

Item	SJDRM75	SJDRM125	SJDRM250	SJDRM630
Max Dia. Of pipe(mm)	75	125	250	630
Main machine	SJ65/30	SJ75/30	SJ90/30	SJ120/30
Motor power(kw)	60	75	160	260
Motor type	Direct current model	Direct current model	Direct current model	Direct current model
Max. capacity(kg/h)	160	260	400	900
Traction speed(m/min)	0.5DRM8	0.3DRM4	0.2DRM2	0.1DRM1
Max. traction(N)	10000	15000	30000	40000
Cutting type	Disc type cutting	Disc type cutting	Planet cutting	Planet cutting
length(mm)	22000	34000	44000	58000

Main Composition

Item	Quantity
SJ-XXX Single Screw Extruder	one set
Die And Mould	one set
Vacuum Calibration Device	one set
Spray Cooling Tanks	one set
Tractor	one set
Cutting Device	one set
Stacker	one set
Optional auxiliary machines for your choice
Mixer	One set
Crusher	One set

Detailed Photos

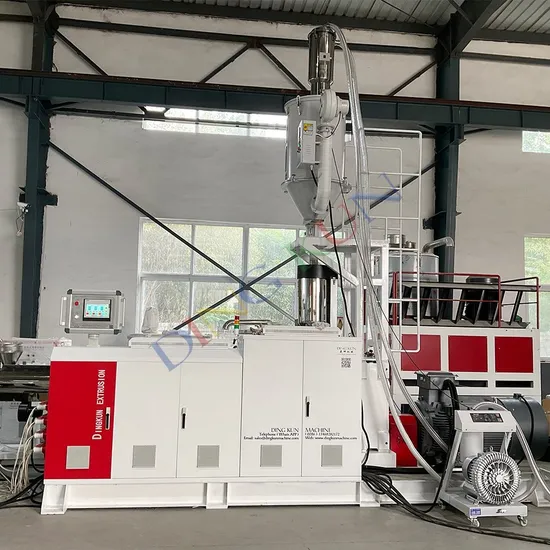

160-450mm HDPE PIPE MACHINE
20-63MM HDPE PIPE MAHCINE
20-63MM HDPE DOUBLE PIPE MACHINE
20-110MM HDPE PIPE MACHINE
630MM HDPE PIPE MACHINE
HDPE PIPE APPLICATION
Advantages (PE PIPE MACHINE/ PE PIPE EXTRUSION MACHINE)

1. 8m/min of maximum lineal extrusion speed, high capacity and low power consumption, and achieved multi-layers
co extrusion with 1-5 layers.
2. The copper bush is more wear-resisting and prevent material leakage which can guarantee a stable running of extruder.
3. Material feed via spiral groove, efficient transmission and can effectively reduce back-pressure on extruder.
4. Unique design (barrier, shearing and mixing zone) guarantees a uniformed plasticizing effect, and can reduce the
pressure on the screw which guarantees a high speed and stable output capacity.
5. High torque gear box has a smart figuration, compact construction, low noise, high carrying capacity, high transmission efficiency
can assure long-time trouble-free operation;
6. Equipped with Gravimetric and Ultrasonic thickness meter,ensure the high quality,save 2-5% raw materials
7. Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently;
8. Chip-free cutter ensuing flat and smooth cutting surface of pipe.
