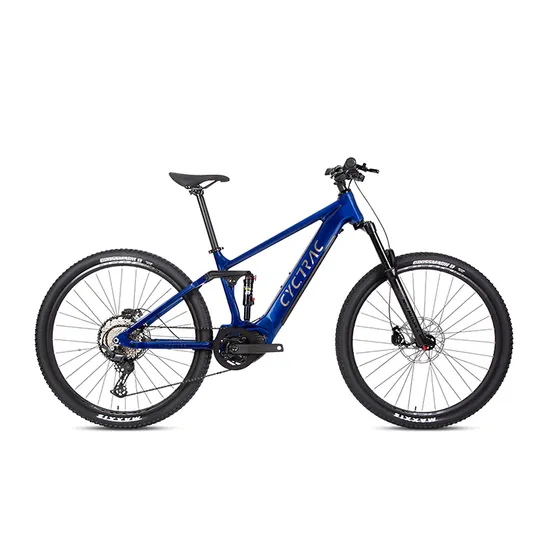

Alu Alloy Bafang 500W MID Drive Rockshox Full Suspension Electric Mountain Bike
Basic Info.
Model NO.
EB-13
Frame Size
16"/18"
Wheel Size
27.5"/29"
Foldable
Not Foldable
Gear
12 Speed
Frame
Alu Alloy
Motor
Bafang 500W
Battery
48V 15ah
Derailleur
Shimano Deore M6100-12 Speed
Brake
Tektro, M535, 4-Piston Hydraulic Disc
Fork
Rockshox-Recon, Air Suspension
Rear Shox
Dnm 200*55mm
Tire
Maxxis 29/27.5*2.25"
Transport Package
Carton
Specification
160*30*88cm
Origin
China
HS Code
8711600010
Production Capacity
100000 Per Year
Packaging & Delivery
Package Size
150.00cm * 30.00cm * 80.00cm
Package Gross Weight
30.000kg
Product Description
| Main Components | |
| Frame Material | Alu alloy AL7005,Flat weld&smooth, Inner cables,Thru-axle12*148 Boost, DNM rear shox200*55,Gloss+UV laser decals |
| Frame Size | 16" / 18" |
| Net Weight | 24.1kg |
| Seat Post | RS, Alu alloy,Matte, 31.6×350mm |
| Fork | ROCKSHOX-RECON, Air suspension,150mm,Manual,Thru-axle 15*110 Boost |
| Head Set | Alu alloy CNC with sealed Bearings 52*52mm |
| Derailleur Lever | SHIMANO DEORE/M6100-12S |
| Rear Derailleur | SHIMANO DEORE/M6100-12S |
| Cranksets | Matching with Mid Motor, 38T |
| Cassettes | SUNSHINE-12S,11-50T |
| Chain | SUMC-12S |
| Brake | RS-LD400, Alu alloy CNC, 4-piston hydraulic disc, with Ceramic heat sink, 203/203mm |
| Hub | RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost |
| Rim | RS, Alu alloy with Double-wall&Rivets, W24×H19mm |
| Spoke | SHUNJIU, Circular 14G |
| Tire | MAXXIS, CROSSMARK, 29/27.5×2.25" |
| Grips | Circular 22.2×120mm, PU leather&locking Ring |
| Saddle | RS, Comfortable and Thickened for MTB |
| Peddle | RS, Alu alloy CNC with Bearings for MTB |
| Electric Parts | |
| Motor | Bafang Mid, M600, Mid, 48V500W |
| Max Torque | 120 N.m (Peak 140N.m) |
| Speed Limit | 25KMh (max 45KMh) |
| Pedal Sensor | Torque+Cadence |
| Battery | Samsung 21700 Li-ion 720Wh, 48V15A |
| Range | 130-150KM (pedal assist) |
| Charging Time | 8-9 Hours |
| Charger | 2A, DC2.1 |
| HMI | Bafang, LCD digital, 0-5 Modes |
| Waterproof | IP X5 |
| Max Load | 150 KG |
Our R&D team is made up of engineers specialized in the industry for over 10 years, and have established a great system from R&D, producing management, quality inspection, to customer services, which give us a strong technical capability to ensure the high quality of our product and meet variable demands from different customers, and support OEM, ODM services.
Our plants are delivering over 150,000 units of bikes every year to customers from all over the world .
Our biggest advantage is the whole lifecycle services to our customers which will address your after-sale concerns.
Be our business partner, and you'll have our full support and cooperation.
