Two Components Polyurethane Coating Polyurethane Insulation Spray Foam Machine Fd-E3

Product Description

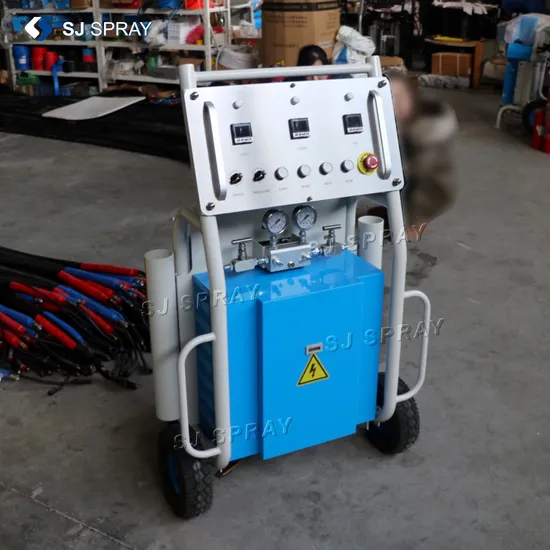

ON SALE NEW 2022 Electric polyurethane spray machine FD-E3

Product Description
1.Electric models are more energy-saving and power-saving, light and efficient.The electric model can be sprayed with polyurea, and can work under 220V single-phase voltage, with high work efficiency and higher conversion rate.
2.More durable and more efficient than air/pneumatic drive machine, only a small air compressor with a displacement of 0.25m³/min is required.But the price is similar to the pneumatic machine.
3.Electronic components and seals are all imported brands, which are stable and not easy to break after long-term use.
4.The pipeline has voltage protection to ensure the safety of electricity use.Spray gun, heated hose can be used with G/R/A/C/O.
5.Applicable to home power supply, this machine can use with 220V,400V 3phase, or 220V,115V single phase. 6.The speed can be adjusted to precisely control the flow rate.The spray work pressure and the stop work pressure adopts 12 gear position. It is suitable for different spray and injection work areas.
7.The voltage is suitable for home use, the working noise is small, and it will not disturb your neighbor.
8.Suppprt OEM,and one piece can be customized for free.

Product Parameters

Project	FD-E3
Data ratio of raw materials	1: 1 (fixed)
Raw material viscosity range	200-1000CPS (at working temperature)
Working pressure	17MPa (170 bar)
Maximum Fluid Temperature	88 ° C (190 ° F)
0utput	2-12kg/min
Gun Type	Spray/Injecting
Total power	10000W
Voltage	230V 1-ph / 3-phs 380V/400V 3-ph
Max heating hose length	60 meters(196.8feet)
Machine size	764*573*1210mm
Gross weight	230KGS
Net weight	180KGS
Package volume	1.1CBM

Standard configurations
1.Slef-cleaning spray gun 1 unit 2.Heated hoses 15 meters 3.Transfer pump 2 unit

Packaging & Shipping
Export fumigation-free wooden box packaging, sea and air transport more robust and reliable.


Exhibition
For more than ten years since its establishment, it has participated in dozens of foreign exhibitions and has very stable partners all over the world.
Certifications
CE certification, rich export experience
