0.2L 0.5L 1L 2L 3L 5L 7L 10L 18L 20L Pet Bottle Drinking Water Fruit Juice Soft Drink Beverage Liquid Blow Molding Blowing Production Line
| US$8,500.00-11,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HM
Making Method of Parison
Stretch Blow
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, QS
Product Name
Bottle Blowing Filling Machine
Capacity
60-10000bph
Bottle Material
Pet/Plastic/Glass
Bottle Size
0.2-20L
Bottle Shape
Round/Square
Working Type
Stretch Blow
Controlled by
Siemens PLC
Cavities
by Order
Automatic
Semi /Fully Automatic
Transport Package
Wooden Package
Specification
50-500m2
Trademark
Honor Machine
Origin
China
HS Code
84774010
Production Capacity
30sets/Month
Packaging & Delivery
Package Size
10000.00cm * 2200.00cm * 2300.00cm
Package Gross Weight
10500.000kg
Product Description
0.2L 0.5L 1L 2L 3L 5L 7L 10L 18L 20L Pet Bottle Drinking Water Fruit Juice Soft Drink Beverage Liquid Blow Molding Blowing Production LineBottle blowing machine is a kind of equipment which can make plastic granules into hollow containers by blow
molding process. It is mainly used in beverage and food industry.
Advantages:
1. Excellent Mechanical Strength, impact-resisting, and non-craking.
2. Bottle mouth and thread are of precise measurement.
3. Plastic Medicine Bottle's safe thread can be molding directly.
4. The size and weight of the product can calculate and design clearly and meet the requirement of the design
without any deviation.
5. The surface of the bottle mouth, neck and the body is good luster and smoothness, the standard of bottle body
is unity.
6. The joint seam on the bottle body is smooth, no scrap rubber.
Main Components and Brands(can be customized)
| No. | Description | Brand & Origin |
| 1 | PLC | Omron (Japan) |
| 2 | Operating Panel | KunlunTongtai (Sino-foreign joint venture) |
| 3 | Servo Motor (Driven the mold clamping system, stepping system, the stretching system, preform arraying) | Yaskawa (Japan) |
| 4 | Speed Reducer | NEUGART (Germany) |
| 5 | High Pressure Blowing Valve (pre-blowing, blowing and exhausting included) | PARKER(U.S.A.) |
| 6 | Cylinder | Rexroth(Germany) or customized (Germany) |
| 7 | Motion Valve | Parker (USA) |
| 8 | Control Button, Intermediate Relay | Omron (Japan) |
| 9 | AC Contactor, Thermal Relay | Customized (France) |
| 10 | Intelligent Voltage Regulator | Omron (Japan) |
| 11 | Silicon Control | Customized (Germany) |
| 12 | Infrared Tungsten Lamp Pipe | Lianggu(China) |
| 13 | Convertible Governor | Omron (Japan) |
Mold reference:
Semi automatic:

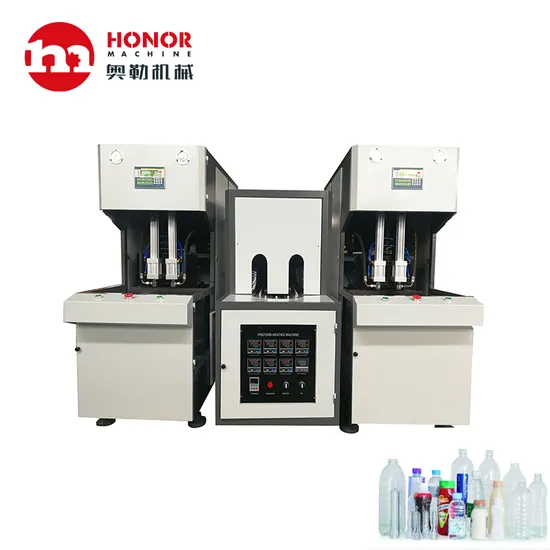

| Model | HM-1500 |
| Machine type | One heater+two blower |
| Cavity | 2 +2 |
| Capacity(500ml/bottle/h) | 1200-1600 |
| Bottle volume | 0.2-2L |
| Max diameter*height | ยข90*320 |
| Weight | 1000kg |
| Model | HM-8Y | HM-8A | HM-8B | HM-9A | HM-9B | HM-12 |
| Machine type | One heater+one blower | |||||
| Cavity | 2 | 2 | 1 | 2 | 1 | 1 |
| Bottle volume | 0.2-2L | 2-5L | 2-5L | 5-10L | 5-10L | 10-20L |
| Capacity(500ml/bottle/h) | 600-800 | 500-700 | 300-500 | 500-700 | 200-400 | 60-120 |
| Weight(KG) | 780 | 1050 | 980 | 1150 | 1000 | 1380 |
| Model | HM-S4 |
| Machine type | One heater+two blower |
| Cavity | 4 |
| Capacity(500ml/bottle/h) | 1800-2000 |
| Bottle volume | 0.2-2.5L |
| Total power | 18kw |
| Weight | 1300kg |
| RO water treatment system: We adopt different equipment to produce pure water, mineral water etc. The main equipment of RO Water Treatment Plant are silica sand filter, active carbon filter, sodium ion exchanger, hollow fiber, RO( reverse osmosis), UV sterilizer, precision filter, ozone generator, water tank etc. It can effectively get rid of muddy organic matter, iron, manganese etc, reduce the hardness of the water to make all specifications of the water quality fully meet the state fresh water standard of fresh drink water. | |
| Water filling machine: 1)It is adopted that direct connection between air conveyor and inlet starwheel instead of screw and conveyor chains, which is easier for bottle changing. 2)There is no need to adjust the height of equipment through neck holding tech for bottle transportation.And what is only to change some spare parts. 3)High speed filling line is of clamp transferring technology.Bottle shapes are more varied, and the working table inside the machine is more laconic. 4)By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier. 5)Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination. 6)High speed and large flow filling valve assures the high filling speed and exact fluid level. 7)Parts contact with the liquid are all of excellent stainless steel or food level plastic.The electric system is of international brand and achieves the national food sanitary standard. | |
| Automatic sleeve labeling machine: It is suitable for all kinds of drinks, such as fruit juice, tea beverage, dairy products, pure water, beer, sports drinks and other food and beverage industries. It not only has high accuracy of labeling position,but also can highlight bottles and perfect bottle-shaped after shrinkage. Characteristic: 1. It is suitable for all kinds of drinks, such as fruit juice, tea beverage, dairy products, pure water, beer, sports drinks and other food and beverage industries. It not only has high accuracy of labeling position, but also can highlight bottles andperfect bottle-shaped after shrinkage. 2. Highly stable mechanical structure,The whole machine adopts stainless steel protective frame cover and aluminum alloyrigid frame, which is stable and rust-free. 3. Flexible choice of all kinds of bottle type: round bottle, square bottle, elliptical bottle etc. can also choose the bottle mouthor body. 4. Unique synchronous cutter holder, within the scope of specifications, no replacement cutter holder. If the specifications need to be changed, it can be completed quickly in 5 minutes. 5. The shape is exquisite and beautiful, the overall structure is strong, and the use is more lightweight and flexible. | |
| Automatic shrink wrapping packing machine: Specially designed for beverages, pure water, fruit juice, wine and other drinks. With full automatic functions of bottle transfer and arrange, film wrapping, sealing and cutting, shrinkage, cooling and other qualities. It adopts the world's advanced film thermostatic sealing technology, and the sealing is firmly cleaned. The PLC program is used for automatic circulation control, and the performance is stable and reliable. Three-layer heat insulation, good heat preservation performance, fast heating, energy saving. |
