Lifting Crane Manual Chain Hoist 7.5 Ton with Welding Machine Trolley Electric Chain Hoist

Product Description

Products Description

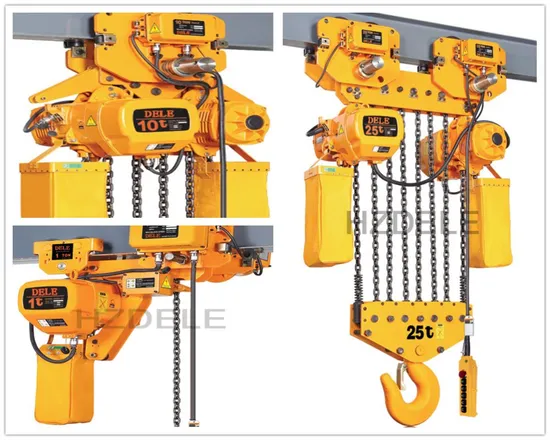

Electric chain hoist engine hoist/lifting equipments fixed hoist with trolley
1:shell:Light aluminum alloy shell shall be adopfed which is light but hard and fit for the use in the femible work environment with a high heat dissipation rate and all tightness design.
2:Inverse phase sequnce protecting device:If is the special electrical installation which control the circuit not to work in case of wiring error in the power supply
3:Limit switch:The limit swifch device is installed where the weight is lifted on and off to make the motor to stop aufomatically so as to prohibit the chains from exceeding for safety.
4:24v/36v device;It is used to prohibit the emergencies from occurring in case of the leakage in the swifch
5:Side magnetic braking device:This device shall realize the instant brake in case of te power dump
6:Chain bag:It shall be light ,handsome and durable.
7:Chain:The chain shall adopt the imprted fec80 ultra heat-treatable steel alloy chain.

Type Capacity(ton) Lifting height(m) Lifting speed(m/min) Lifting motor Power(kw) Rotation speed(r/min) Phases Voltage(v) Frequency(hz-s) DLHKM00501 0.5 3/9 6.8 0.75 1440 3 380 50 DLHKM0102 1 3/9 3.4 0.75 1440 3 380 50 DLHKM0101 1 3/9 6.6 1.5 1440 3 380 50 DLHKM01501 1.5 3/9 8.8 3 1440 3 380 50 DLHKM0201 2 3/9 6.6 3 1440 3 380 50 DLHKM0202 2 3/9 3.3 1.5 1440 3 380 50 DLHKM02501 2.5 3/9 5.4 3 1440 3 380 50 DLHKM0301 3 3/9 5.4 3 1440 3 380 50 DLHKM0302 3 3/9 4.4 3 1440 3 380 50 DLHKM0303 3 3/9 2.2 1.5 1440 3 380 50 DLHKM0502 5 3/9 2.7 3 1440 3 380 50 DLHKM07503 7.5 3/9 1.8 3.0*2 1440 3 380 50 DLHKM1004 10 3/9 2.7 3.0*2 1440 3 380 50 DLHKM1004 10 3/9 2.7 3.0*2 1440 3 380 50 DLHKM1506 15 3/9 1.8 3.0*2 1440 3 380 50 DLHKM2008 20 3/9 1.4 3.0*2 1440 3 380 50 DLHKM2508 25 3/9 1.3 3.0*2 1440 3 380 50 DLHKM3010 30 3/9 1 3.0*2 1440 3 380 50 DLHKM3512 35 3/9 0.9 3.0*2 1440 3 380 50

Type Operation motor I-beam(mm) Power(kw) rotation speed(r/min) phases voltage(v) Frequency(hz/s) Rotation speed(r/min) DLHKM00501 0.4 1440 11/21 3 380 50 58-153 DLHKM0102 0.4 1440 11/21 3 380 50 58-153 DLHKM0101 0.4 1440 11/21 3 380 50 58-153 DLHKM01501 0.4 1440 11/21 3 380 50 58-153 DLHKM0201 0.4 1440 11/21 3 380 50 58-153 DLHKM0202 0.4 1440 11/21 3 380 50 58-153 DLHKM02501 0.75 1440 11/21 3 380 50 58-153 DLHKM0301 0.75 1440 11/21 3 380 50 58-153 DLHKM0302 0.75 1440 11/21 3 380 50 58-153 DLHKM0303 0.75 1440 11/21 3 380 50 58-153 DLHKM0502 0.75 1440 11/21 3 380 50 58-153 DLHKM07503 0.75 1440 11/21 3 380 50 58-153 DLHKM1004 DLHKM1004 0.75 1440 11/21 3 380 50 58-153 DLHKM1506 0.75*2 1440 11/21 3 380 50 58-153 DLHKM2008 0.75*2 1440 11/21 3 380 50 58-153 DLHKM2508 0.75*2 1440 11/21 3 380 50 58-153 DLHKM3010 DLHKM3512

Certifications
Details Images
The quality comparison of spare parts
Factory
Payment
Our Service
FAQ
Q1. What's information should I provide to get the price?
A:1. Chain quality? 2.the chain size? 3. the working voltage? 4. the machine frequency?
Q2. What's the lead time for regular order?
A: The normal delivery time is 60-120 days. If you have special needs or if the quantity is greater than 1 set, please explain
when making an inquiry. When we quote, we will provide you with accurate delivery time according to the actual situation.
Q3. The space of my workshop is limited, can the machine is ok for me?
A: We have been specializing in European machines for 20 years. Machines are one of the biggest features of our products.According to your needs, our designers will tailor-made products suitable for your use.
Q4.Can you provide lifting tools?
A: Yes, we can provide any type of lifting tools such as Manual chain hoists, manual lever chain hoist, electric chains
hoists,chains, slings, hooks, electromagnetics, grabs, beams, etc.non-standard fixtures, etc... Welcome to consult
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. Are there any professional technicians to assist our installation?
A: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
Q7. How do you ship the goods and how long does it take to arrive?
A: Small products can be transported by air, and large products can be transported by sea. According to different countries and regions, the specific time will be confirmed according to the actual situation.
Q8. What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.
Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral wooden boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. There is no package of big machines,there are just protective covers.
Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q11. How to proceed an order for hoist?
A: Firstly let us know your requirements or application:Hoists capacity, chains length and others? Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q12. Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
