Portable Pipe Beveling Machine Welding Preparationn Tube Chamfering Tools

Product Description

Production Description

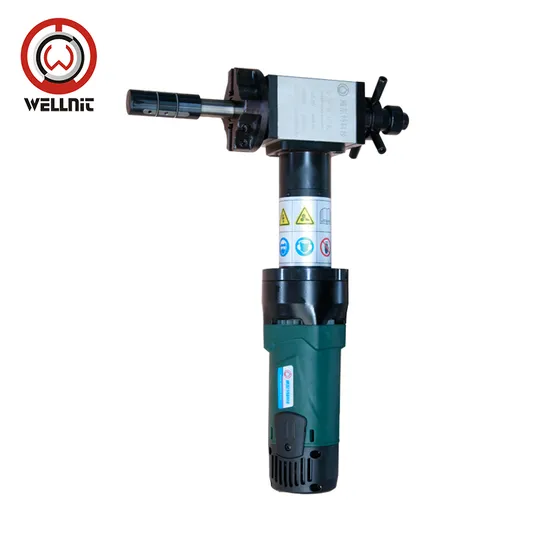

Manufacture Machine Pipe Chamfering Tool
The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.
On-site cold Beveling improves safety
Easy set-up & Operation
Self-Centering
Can be positioned in any direction
Feed ratchet spanner makes tool feed / back easily
Light weight and compact design
Electric Pneumatic METABO
Spcification:

Model	Working Range (ID/OD)		Wall Thickness	Rotation Speed
ISE-30	Φ16-28	Φ19-38	≤15	50r/min
ISE-80	Φ28-76	Φ32-89	≤15	55r/min
ISE-120	Φ40-110	Φ48-120	≤15	30r/min
ISE-159	Φ65-159	Φ72-168	≤20	35r/min
ISE-252-1	Φ80-240	Φ90-273	≤20	16r/min
ISE-252-2			≤75	16r/min
ISE-352-1	Φ150-330	Φ160-356	≤20	14r/min
ISE-352-2			≤75	14r/min
ISE-426-1	Φ250-410	Φ260-430	≤20	12r/min
ISE-426-2			≤75	12r/min
ISE-630-1	Φ300-600	Φ320-630	≤20	10r/min
ISE-630-2			≤75	10r/min
ISE-850-1	Φ590-830	Φ610-850	≤20	9r/min
ISE-850-2			≤75	9r/min

Model		ISE-159
Working Range (mm)	ID	65-159
	OD	67-168
The Input Electrical Power(W)		1200
voltage(V)		220-240
frequency (HZ)		50/60
Rotating cutter head speed (r/min)		35
Feed range(mm)		55
Net Weight		24KGS

Project

FAQ&Order Guide Q: Are you trading company or manufacturer ?
A: We are the leading manufacturer.
Q: How long is your delivery time?
A: Generally 1-2days in stock,depends on quantity.
Q: Can you OEM?
A: Yes, we can do OEM as customer's request.
Before you place order to us, please let us know the following information:
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed
If the pipe wall thickness more than 30mm, inform us in advance (Important)
