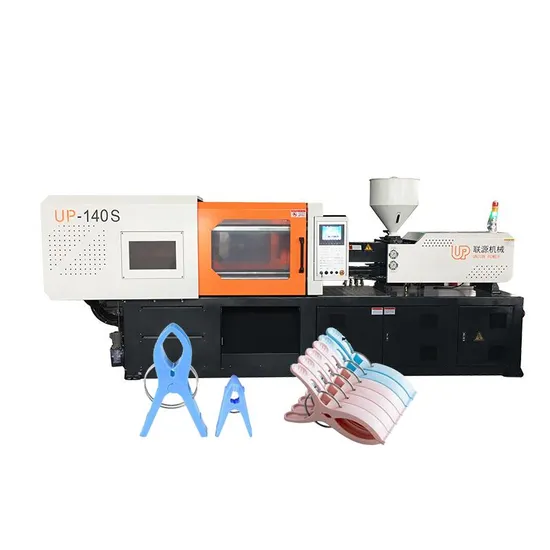

Cloth Hanger Making Machine 140 Ton Injection Molding Machine
| US$15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
UP-140
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Machine Weight
13t
Heating Power
24.4kw
Tank Volume
600L
System Pressure
16MPa
Transport Package
Film Packing
Specification
7.2*1.9*2.35
Trademark
UP
Origin
China
HS Code
8474809090
Production Capacity
500
Product Description
Product DescriptionOur factory is located in Ningbo, near Shanghai. It is a professional manufacturer of injection molding machines, injection molds and auxiliary equipment. The range of injection molding machines is from 50 tons to 3000 tons, and the tensile resistance is from 40000 g. Machine family:
A) Standard injection molding
Machine
B) PVC injection molding machine;
c) PET injection molding machine;
D) Two-color ejector;
E) Fully hydraulic injection molding;
F) All-electric injection molding machine; Full injection
China servo injection molding machine.
A. modulus of capacitance: The position, size, and maximum allowable modulus of capacitance and minimum closure thickness of the injection molding machine guide pillar (Green column).standard injection molding machine manufacturer
B .nozzle parameters: spherical diameter of the nozzle, nozzle aperture, nozzle outer diameter, maximum nozzle extension length, positioning aperture.standard injection machine. C. code mold parameters: code mold hole, slot size.ce standard injection molding machine. D .Ejection mechanism: The position of the ejection point and the diameter of the ejector rod, and if necessary, the ejection force and ejection stroke are also provided. E. Mold opening stroke and maximum opening distance.plastic injection machine
| Technical Parameters | Model UP-140T | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 38 | 42 | 45 |
| Shot Volume (cm3) | 215 | 260 | 302 |
| Injection weight (g) | 194 | 237 | 272 |
| injection pressure (Mpa) | 186 | 152 | 132 |
| Screw speed (rmp) | 215 | ||
| Clamping Unit | |||
| Clamping force (KN) | 1400 | ||
| Open stroke (mm) | 380 | ||
| Max Mold height (mm) | 450 | ||
| Min Mold height (mm) | 135 | ||
| Space between tie bars(mm) | 420*420 | ||
| Ejector force (KN) | 46 | ||
| Ejector stroke (mm) | 120 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 13(14) | ||
| Heating power (KW) | 8.2 | ||
| Machine dimension (M) | 4.2*1.2*1.9 | ||
| Machine weight (T) | 3.4 | ||
| Oiltank cubage (L) | 190 | ||
Note: Different machines, the quantity of free accessories is different
