M-100A DN20mm-150mm (1-6Inch) Plane Globe Valve Grinding Machine

Product Details

Product Description

Product Description
M-100A DN20mm-150mm (1-6Inch) Plane Globe Valve Grinding Machine
Product introduction：
Grinding scope: Flat globe-valve(Safety Valve): DN20mm-150mm(1"-6")
Flat valve seats
Motor power: 750W
Rated Voltages: 220V/50HZ
Allowed adjustable length: L≤250mm
Gross weight: 23.5kg
Plane Globe Valve Grinding Machine For Sale
1. M-100 Portable Globe&Safety Valve Grinding Machine Overview
Model M-100 portable valve grinder is developped for the maintenance of valves as the new generation product. It is mainly used for grinding DN20-150mm flat Globe valve ,cone valves and safety valves,The product can reduce labor intensity, improve labor efficiency and lower maintenance costs.It is widely used in the industries such power generation, petroleum, chemical and metallurgy .It has the following characteristics:
Light, compact, and easy to carry
Split-type assembly makes installation easy and fast
Easy to be used
High efficiency,good grinding quality
Maintenance in the site without valve disassembles and assembles
2. Technical Parameter

Item	M-100	M-100A for Flat Globe Valve	M-100C for Cone Valve
Grinding Range（mm）	DN20-150mm Offline gate valve,globe valve	Dn20--150mm Flat Globe Valve,Safety Valve, Flat Globe Vavle Seat	DN20-100mm Cone-valve Valve seat angle: 30°,40°,60°,75°,90°can be Selected
Voltage（V）	220	220	220
Power（W）	750	750	750
Frequency（HZ）	50	50	50
Max Grinding Depth（mm）	250	250	250
Gross Weight（kg）	26	23.5	23.5

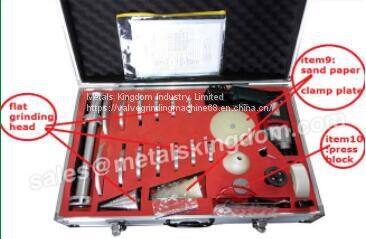

3. Part list and installation pictures
The said grinder is composed of motors,hand-lift set,driving shafts,Centering Sleeve, lapping head, paper-pressure, gasket, nut and so on.
The following pictures separately expressed installation for various valves.
M-100A For plane globe valve and safety valve:
