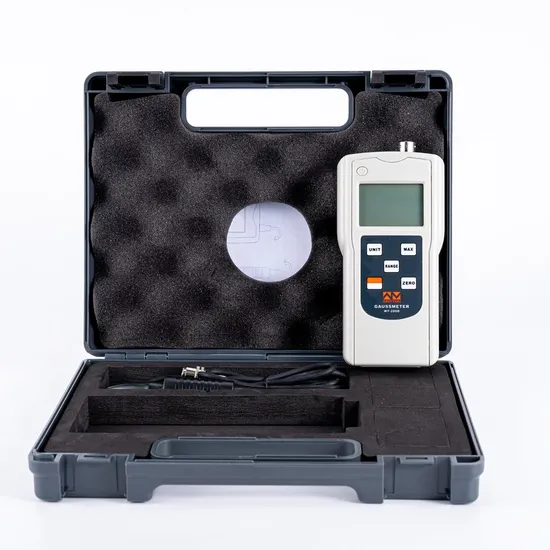

Digital Gauss Meter Tesla Meter Surface Magnetic Field Tester Gaussmeter with 5% Accuracy

Product Description

Detail Product Description
Product Description


It can be used to measure the magnetic induction intensity of DC magnetic field, AC magnetic field and other magnetic fields.
Product Feature

* Portable, wide range.
* Easy to operate, clear LIQUID crystal display.
* There are measurement/peak retention, mT/Gs unit conversion.
* 200mT/2000mT range conversion, etc.
Product Parameters
Product Parameters

Measuring range	0~200mT~2000mT
Frequency range	10Hz~200Hz
The accuracy of	0~100mT 2%, above 100mT 5% (measured in a uniform magnetic field)
Magnetic field under test	Dc magnetic field (static magnetic field)
Functional specifications	Peak retention Gs(Gauss) /mT (Millitesla) can be switched freely
Dc polarity of measurement	N for positive, S for negative
Operating Conditions	5ºC~40ºC
Relative humidity	20%~80%(There is no dew)
Power supply	Four no. 5 batteries can be externally connected to a 5V stabilized voltage supply
Overall dimensions	140mm (L) X73mm (W) X 30mm (H)
Instrument weight	180g
Display mode	41/2LCD
According to the unit	mT/Gs

Product Accessories

Standard Accessories	Main engine (one)
	Hall sensor (one)
	Operating Instructions (one copy)

Buying Guide

When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
