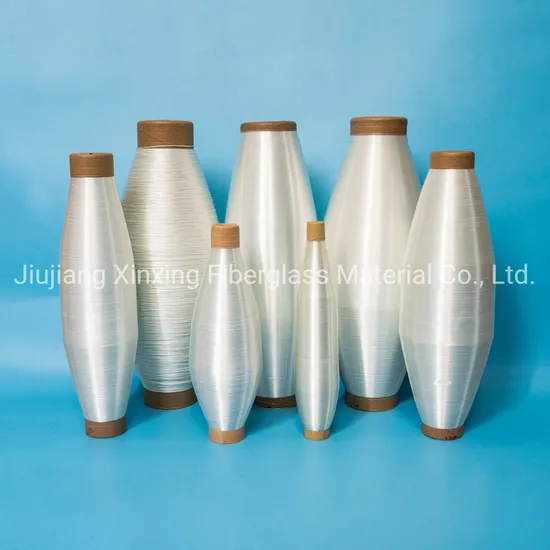

Ec5 11X1 Fiberglass Yarn for Weaving

Product Description

Item Code:
EC5 11X1(700g paper tube)

Specification:
1) Fiberglass yarn use glass sphere as raw material
2) It is insulation, high intensity,corrosion resistance, high temperature resistance,low water absorption,etc.
3) It is necessary material of all kinds of insulation products and industry yarn.
4) Specification:6tex,12tex,27tex,33tex,normally1-strand,2strand,3strand,4strand,6strand,8strand
5) Other specification can be produced per customers requirments

Technical Parameter

Specification	Product Type (British System)	Density (tex)	Linear Density (μm)	Strand NO.* Strand	Strength(N/TEX)	Twist of Yarn	Customizable Twist	Direction of Twist
EC5	EC5 11X1	11±0.8	5.5	11X1	≥0.60	28~70	71~100	Z
	EC5 9x1x2	18±1	5.5	9x2	≥0.60	28~100	101~150	S

Packaging Information

Type of Yarn Tube	Units of Measurement	Package Capacity	Carton Type	Carton Capacity	Packing Size (L*W*H)
300g	SI(cm)	280g	Carton+	63	47.5*38*26
700g	SI(cm)	680g	Carton+	30	47.5*38*26
2kg(plastic tube)	SI(cm)	1.5kg	Carton+	180	1282*1124*1035

Storage and Transportation
Products are mainly packaged in cartons.It is recommended to maintain room temperature balance, and the optimal storage conditions are 15~35ºC.This product should be kept in the original packaging before use, in order to ensure safety and avoid damaging the product, the layer height is not more than six layers.The mode of transportation is wagon consignment,and the packaging is pallets and wrapping film.
Product Application
Electronic grade glass fiber cloth is mainly used for copper clad substrate, insulation board, insulation cloth, fireproof cloth, engineering plastic reinforcement, etc.
Delivery Time:
(1) Payment trems:
With T/T or L/C
30% of payment in advance, the balanced 70% should be paid when the copy of B/L at sight.
(2) Lead Time:
within 7-15 working days
(3) Port:
Fob Jiujiang or Shanghai
We are offering you different kinds of glassfiber yarn which with best quality and competitive price,most of our products was pupolar with more than 10 countries from Asia and Europe such as Germany,Italy,Russia,Estonia,Japan .etc. If you are interested in our products and need more detailed information about our goods and prices,please contact us asap.
We sincerely hope to cooperate with you.
