Max. ID 150mm Od320mm CNC Automatic Universal Cylindrical Grinder for Precision Mini Shafts/Mikrosa

Product Description

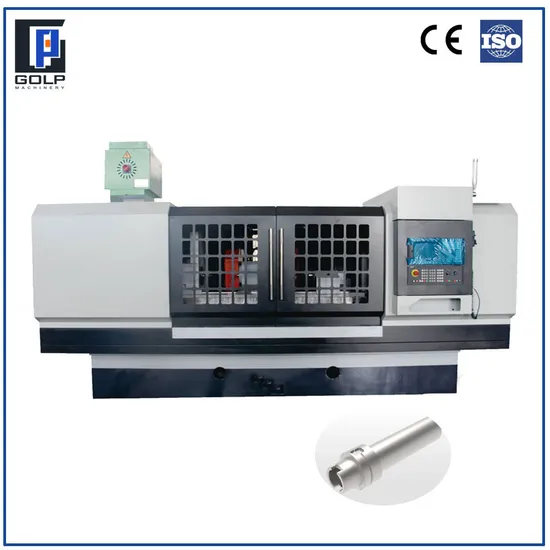

MK1432 CNC universal cylindrical grinder is designed for grinding internal and external. It can also grind shaft-, sleeve-like parts as well as ring and plug gauges etc...

Max.Grinding length		500mm	1000mm	1500mm
Grinding OD scope		8-320mm
Grinding iD scope		20-150mm
Max.Grinding depth		180mm
Center height from top to table		180mm
Longitudinal move distance of worktable		550mm	1050mm	1550mm
Rotating angle of worktable		+4,-3°
Move amount of grinding wheel frame		250mm
Taper of head and tail tops		Morse No.5
Chuck diameter of head frame		200mm
Move amount of tail frame sleeve		40mm
Max.size of grinding wheel		600x20-70x305mm
Servo motor power of X axis		11nm
Servo motor power of Z axis		20nm
Motor power of B axis		2.2kw
Positioning accuracy of B axis		+,-4 arc sec
Repeat positioning accuracy of B axis		+,-2 arc sec
Positioning accuracy of X/Z axis		8um
Repeat positioning accuracy		2um
Motor power of grinding wheel		11KW
Total power of machine tool		21.5kw
Weight of machine tool		7700kg	8800kg	10000kg
Size of machine (mm)		3700x2800x2600	4300x2800x2700	5200x2800x2800
Processing accuracy(standard specimen)	ID/OD roundness	0.002mm
	OD cylindricity	0.003mm
	Surface roughness	Ra0.32um

WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q:How long is the product warranty?
A: 24 months
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.
Q: What kind of product certification do you have?
A: All our products have passed ISO9001 and CE certifications. We have strict quality inspection process before leaving our factory in order to offer the best quality machines to our customers.
Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.
Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.
