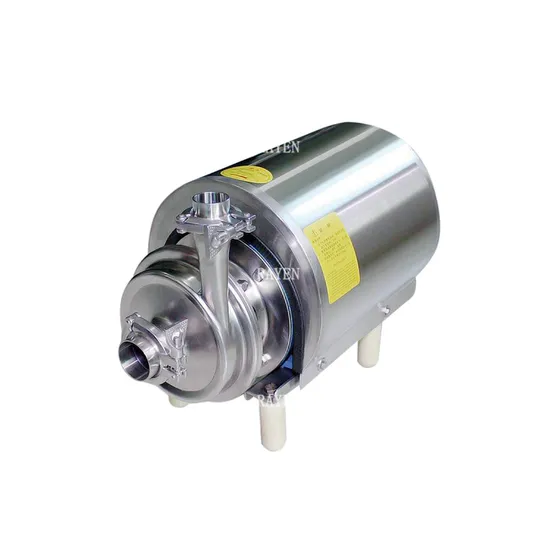

Factory Selling Sanitary Stainless Steel Food Grade Centrifugal Pump Beer Mini Small Juice Milk Pump

Product Description

Factory selling Sanitary Stainless Steel food grade Centrifugal Pump beer mini small juice Milk Pump
1.Standard:ISO,DIN,SMS,3A etc.
2.Material:SUS304,316L
3.inlet out let Specification:DN15-200 &1- 8"applied to stainless steel pipeline system.
4.Motor:ABB or made-in-china type
5.Flow:3T/H-80T/H.Lift:18m-60metc
6.impeller:open or clsoed
7.Connection:thread,weld,clamp
8.Power:0,75kw-15kw&1HP-15H etc
9.Temperature:-8°C~100°C
Factory supply liquid beverage pump sanitary pump is mainly applicated for pharmaceutical liquid delivery such as liquid, soup, alcohol, spirit, beer etc. Widely used in the fields as medicines, cosmetics, chemicals and beverages etc.

Material	SS304 or SS316L
Flow/H (Capacity)	0-100T/H (Customized)
Lift (Pressure)	0-8bar
Production Viscosity	1-50pas
Impeller type	Closed impeller/Open impeller
Working temperature	0-140 celsius degree
mechnical seal type	Sinlge mechanical seal		Double flushed mechanical seal
connection type	Clamp	Union	Flange
motor type	Normal	Ex-Proof	inverter
motor cover	Round/Square
Speed or Frequency	2900RPM/3400RPM 50HZ/60HZ

Sanitary Centrifugal pump Model Sheet
Model	FLOW(T/H)	Lift(M)	Speed(RPM)	Motor(KW)
RAY-1-14	1T	14	2900/3400	0.55
RAY-3-16	3T	16	2900/3400	0.75
RAY-3-20	3T	20	2900/3400	1.1
RAY-5-24	5T	24	2900/3400	1.5
RAY-3-30	3T	30	2900/3400	2.2
RAY-5-36	5T	36	2900/3400	2.2
RAY-10-24	10T	24	2900/3400	2.2
RAY-15-24	15T	24	2900/3400	3
RAY-10-36	10T	36	2900/3400	3
RAY-20-24	20T	24	2900/3400	4
RAY-15-36	15T	36	2900/3400	4
RAY-20-36	20T	36	2900/3400	5.5
RAY-30-36	30T	36	2900/3400	7.5
RAY-40-36	40T	36	2900/3400	11
We can customize the equipment according to customer requirements.

APPLICATION: LOW Viscosity Liquid as below: Drugs: infusion, distilled water, high purity water, containing particles (3-6 mm) of traditional Chinese medicine liquid, leaching liquid. cosmetics: dyes, alcohol, essential oils. beverage: alcohol, liquor, beer, malt juice, fermentation liquid, fruit juice and granular beverage. dairy products: whey, cream, milk, liquid sugar others: candy industry, baking industry, chemical industry, etc.
Sanitary Food grade Centrifugal pump More Pictures
\

1. Q: Are you manufacturer or trading company?

A: RAYEN is a professional manufacturer.

2.Q: How could we confirm the details of the products?

A: RAYEN will provide the detail drawings for you to confirm.

3.Q: How long the warranty will be?

A: 1 Year warranty.

4.Q: Do you take L/C?

A: Yes, we accept Western Union, T/T and irrevocable L/C payable

5.Q: Can we become your distributor in our country?

A: Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
