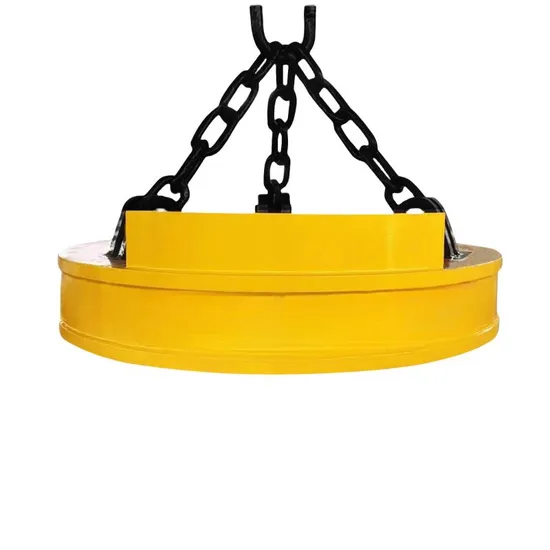

Permanent Circular Lift Magnet for Lifting Scrap

Product Description

Product Description
Heavy-Duty Lifting & Excavator Magnet Attachments
Product Description
1, Installation flatness of electromagnetic suction cup: 0.01 measured on 300 mm length, 0.005 allowed for every 300 mm increase.
2, The parallelism of the electromagnetic suction cup workbench to the mounting surface: measured on the 300 mm length, it is 0.02, and 0.01 will be increased every 300.
3, The common rectangular electromagnetic chuck mainly uses the magnetic worktable of the plain grinder, which is mainly used to hold the magnetic conductive workpiece for medium strength grinding. It can also be used for EDM machine tools, tool grinders, etc.
4, The electromagnetic chuck has good positioning function for some workpieces that are not easy to be clamped. The upper plane of the electromagnetic chuck and the joint surface of the workpiece should be smooth, so that the workpiece can be firmly absorbed to ensure the safety of the grinding process
5, It is connected with the grinder through the charging and demagnetizing controller, and the charging and demagnetizing are carried out through the button operation, which is very convenient to use.
6, improve the grinding efficiency by more than 80%.
Product Parameters
Lifting electromagnetic chuck, also known as lifting electromagnet, electromagnetic jack, is mainly used for lifting and
transporting magnetic conductive materials such as steel in metallurgy, mining, machinery, transportation and other industries. It is also used as an electromagnetic manipulator to hold magnetic materials such as steel, and is suitable for handling cast iron ingots, steel balls and various scrap steels. The excitation mode can be adopted: constant voltage mode, strong excitation mode and over-excitation mode.
1. Strong power, strong suction, can carry 1-5 tons of weight.
2. The operation is simple, the mobility is good, and the transfer site does not need to be disassembled.
3. It is not limited by the site and can be directly installed on the excavator for use.
4. It can be matched with the excavator and will not damage the original pipeline.

Model	Diameter(MM)	Current(A)	Power(KW)	Lifting capacity (cold/hot) (KG)			Weight(KG)	Excavator (T)
				Steel ball	Steel block	Iron filings
XS-70L	700	15	3.3	2500	380/200	120/100	500	3-5
XS-80L	800	18	3.96	3000	480/250	150/130	600	5-8
XS-90L	900	26.6	5.85	4500	600/400	250/200	760	10-12
XS-110L	1100	35	7.7	6500	1000/800	450/400	900	12-15
XS-120L	1200	45.5	10	7500	1300/1000	600/500	1300	18-20
XS-130L	1300	54	11.9	8500	1400/1100	700/600	1700	20-25
XS-150L	1500	71.2	15.6	11000	1900/1500	1100/900	2400	25-35
XS-165L	1650	75	16.5	12500	2300/1800	1300/1100	2700	30-35
XS-180L	1800	102.4	22.5	14500	2750/2100	1600/1350	3500
XS-210L	2100	129	28.4	21000	3500/2800	2200/1850	4800
XS-240L	2400	154	33.69	26000	4800/3800	2850/2250	9000

Company Profile
Yang zhou Xinshi Machinery Co., Ltd. is a professional excavator attachments manufacturer in China which was found in 2016 has a lot of experience in construction machinery attachments producing
Our products include hydraulic breaker hammer, hydraulic grabs, hydraulic shear, quick hitch, pile hammer, Hydraulic pulverizer, Hydraulic cylinders, mini excavator, various types of excavator buckets, etc
We sincerely look forward to establishing stable, long-term and strategic partnerships with new and existing customers around the world, with an eye on our bright future and mutual cooperation.
Main Products

Product Applications

Packaging & Shipping
FAQ
Q: Are you a manufacturer?
A: Yes, our factory was established in 2016.
Q: Are you sure your product will fit my excavator?
A: Our equipments are suitable for most excavators. Show us your excavator model, we'll confirm the solution.
Q: How about your products warranty?
A: 12 months warranty for our products
Q: Can you produce according to customer's design?
A: Sure, OEM service available. We are a professional excavator attachments manufacturer in China.
Q: What's the MOQ ?
A: MOQ of excavator attachments is 1set.
Q: How about delivery time?
A: 7-25 work days after the payment
Q: How about the package?
A: Our equipments wrapped by stretch film packed by pallet or poly wood case or as requested.
Q: Which country have you exported?
A:United States Canada, Australia, Saudi Arabia, Korea, Peru, Egypt, Brazil, Mexico, South Africa etc.
