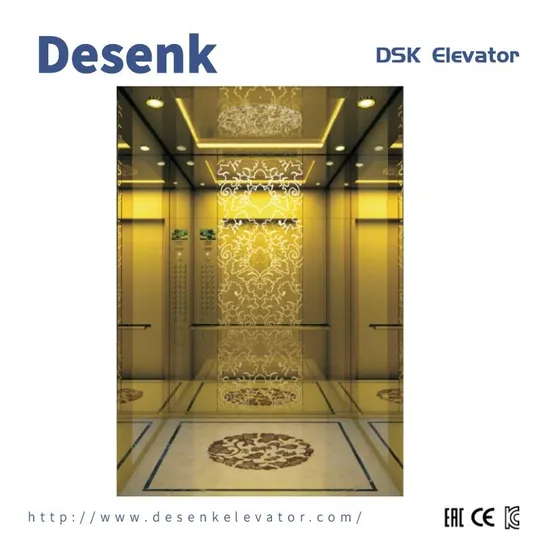

Desenk Home Lift Vvvf Passenger Lift with Best Elevator Quality

Product Description

Company Profile
Desenk elevator (China) Co.,Ltd is a focus on the global elevator development and manufacturing of Sino-US join venture. The company is a manufacturer integrating product development, design, manufacturing, sales, installation and maintenance. Our products include passenger elevators, home elevators, escalators, freight elevators, etc.
Product Parameters

Machine room	MR/MRL Passenger Elevator
Load capacity	450kg, 630kg, 800kg, 1000kg, 1150kg, 1250kg, 1350kg, 1600kg, 2000kg
Speed	1.0m/s, 1.5m/s, 1.75m/s, 2.0m/s, 2.5m/s, 3.0m/s, 4m/s
Travel height	3.2m - 125m
Drive type	VVVF
Control system	Monarch/Step Elevator Control System
Traction machine	Gearless Elevator Motor
Cabin size	According to the elevator shaft size

Features and Advantages Creating Unpercedented Cabine Height
Desenk elevator adopts a new cabine height for elevators according to future trend, which makes the cabine space more elegant, high-end and wider than traditional one, giving passengers a unique experience. The unique design makes the door-to-door distance wider, the height is larger, and the space is larger.
Elevator Energy Saving
. Automatic wake-up device
Can save energy in non-operating conditions of the elevator.
. Gearless permanent magnet synchronous motor
Increase the transmission efficency by 25%-35% and save energy by over 40% when compared with traditional traction machines.
. Permanent-magnet variable-frequency door operator system
No reduction box, low speed output, larger torque, it can save engergy by over 50% when compared with traditional.
. Energy return technology
Collect the energy generated in the no-load going-up or full load going down to power grid for other equipment.
. LED illumination system
Reduce electricity consumption by over 30% when compared with traditional light sources.
Certifications
. Chinese Elevator Manufacture License, Maximum speed 8m/s
. CE Certificate
. Russian EAC certification
. Elevator Quality Certificate
Workshop Exhibition
Packaging & Shipping Solid wooden box in container for long distance sea transportation.
Shipped in 30 days after payment.
FAQ
1. What's the necessary information should be provided before purchasing an elevator?
1).How many people loading?
2).How many floors does the elevator travel?
3).What's the shaft size? Shaft width and shaft depth?
4).Is there a machine room on top of the shaft?
2. What advantages your elevators?
We use the best parts for our elevators, gearless motor from xizi Otis, door operator from Shenling or Wittur, control system from Monarch or STEP etc.
3. Installation & Maintaining
We will send installation & maintaining manual along with the escalator in the container.
Our suggestion is to hire a professional local company for installation and future maintaining,once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.Technician will be sent to the job site if necessary.
4. Payment term
T/T or L/C at sight.
5. What's your guarantee time?
We can provide 18months guarantee period, during this time, we will send free replacements to you.
6. Can we visit your factory before we order?
Yes of course, you're welcome to visit us. Our company is near to Shanghai airport.
7. What's your delivery time?
Usually 30 days after the arrival of deposit, but urgent production is also available.
