Animal Manure Dehydrator Farm Pig Horse Chicken Manure Dewatering Drying Machine

Product Description

If you interested in this machine pls contact tina for more details

Product Description
The dewatering machine for cow dung uses the pump to pull the fowl manure, cow dung, etc. into dewater equipment, the material through the screen and then press by the screw, the rotary speed of the machine can reach 45r/min, within the press of the screen and high rotary speed, the material will be dewatered by the machine, and the water will enter into the pool through the screen.

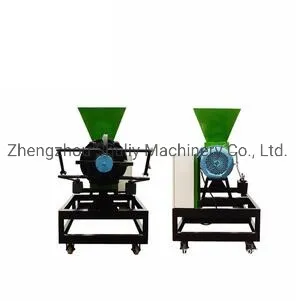

Detailed Photos
Product Parameters
Machine structure of animal manure dehydrate machine
Screw: The machine adopts a high-strength screw shaft, anti-corrosion alloy double-coil blade, and spiral blade with manganese treatment, which is twice the service life of other similar products.
Screen Mesh: Screen mesh made of stainless steel.Made by multiple programs. For different materials, you can replace the screen with different density to achieve the desired effect.
Outlet: There is a spring at the exit to adjust the dryness and wetness of the extruded material, and separate the solid manure and manure with a water content of only 35%.
Cycloidal Reducer: Compact and small size.Smooth operation and low noise. Long service life, the main parts are made of high carbon chrome steel material, high strength is obtained by quenching treatment (HRC58~62), and some transmission contact adopts rolling friction, so it has long durability and long service life. Important parts list
1.One unit pump(with cutting knife, never will be blocked)
2.One unit water pipe
3.One unit switch box
4.Two units motor(one is for separator, the other is for the pump)
5.One unit screw(stainless steel, anti-corrosive)
6.One unit screen from three model (0.3mm, 0.5mm,0.75mm ) (stainless steel, anti-corrosive)
Main technical parameters of animal manure dehydrate machine

Model	SL-180	SL-230
Motor Power	4 kW	5.5 kW
Pump Power	3 kW	3 kW
Machine Rotary Speed	33.7 rpm	45 rpm
Working Capacity	4 m³/h	7 m³/h
