Detachable Transport Large Volume Bed Type Milling Machine

Product Description

Detachable transport large volume bed type milling machine
Detailed Photos

√ bed type milling machine √ high rigidity machine structure for 2000kg heavy load capacity √ mill head can swivel 360°, ensures vertical & horizontal milling mode √ stepless spindle speeds in high and low 2 range, for both high-speed-fine-milling and low-speed-powerful-milling √ brief design control panel, easy to operate √ equipped with E-handwheels on control panel, ensures 3-axis easy & precise manual feeding
1.Variable spindle speeds in 2 steps 2.Ball screws on X Y and Z axes 3.Servo motors on X Y and z axes
• 2000kg heavy duty, bed-type milling machine • infinitely variable spindle speeds • 3-axis ball screws • 3-axis individual servo motors driven • equipped with E-handwheels for manual control of table movement • equipped with automatic electronic lubrication pump • equipped with coolant system & coolant water tank

Product Parameters

Specifications	Unit	X715	X716
Spindle hole taper	mm	7:24 ISO50	7:24 ISO50
Spindle speed range	r/min	Variable 6-300, 30-1500	Variable 6-300, 30-1500
Distance between spindle axis and column guideway	mm	610	8-660
Distance between spindle nose and table surface(V)	mm	0-650	0-700
Distance between spindle axis and table surface(H)	mm	8-660	8-660
Table size	mm	2100*500	2500*600
T slots	mm	4/20/100	5/20/100
Table travel-X	mm	1500	1800
Table travel-Y	mm	650	700
Table feed-X/Y	mm/min	2.5-3000	2.5-3000
Table feed-Z	mm/min	2.5-2500	2.5-2500
Table rapid feed X/Y/Z	mm/min	6000/6000/3000	6000/6000/3000
Main motor power	Kw	11	11
Torque of X/Y/Z axis AC servo motor	Nm	18/23/18	18/23/18
Cooling pump motor power	w	90	90
Overall size	mm	3220*2420*2800	4380*2520*2800
weight	kg	7300	9000

Certifications
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Machine packed with plywood case and steel pallet.

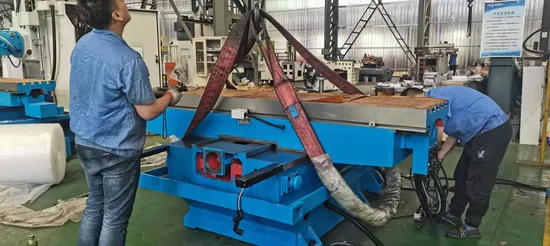

Split into two packages
