Germany Hoerbiger or Rexroth Bending Machine Free Samples

Product Description

See what we got
Product structure
1 Original factory design, using finite element analysis method to ensure the strength, rigidity and safety of the machine.
2 Beautiful appearance, exquisite workmanship, the pursuit of details, whether it is machining, welding, assembly of parts, or painting, labels, etc. Strive for perfection.
3The high quality steel plate welded structure is adopted, tempered to relieve stress, and the frame is thick, rigid, and shock absorbing. The structural parts are sanded to remove rust and sprayed with anti-rust paint.
4The column, upper working slider and lower table of the machine tool are finished by the world's top large-sale CNC floor boring and milling machine, which ensures the parallelism, perpendicularity and parallelism of each installation surface.
5Upward bending design, smooth work, convenient operation and safety.
Main Import of Deployment List----WE67K Series
1). Control System: Netherland DELEM, Swiss CYBELEC or Italy ESA.
2). Hydraulic System: Germany HOERBIGER or Rexroth
3). Servo motor and drive: Japanese YASKAWA
4). Raster Ruler: Germany HEIDENHAIN
5). Ball Bearing Lead Screw: Taiwan HIWIN
6). Straight-line Guide: Taiwan HIWIN
7). Seal Ring: FLETZ, Japanese NOK or VALQUA
Slider synchronization control
It adopts advanced electro-hydraulic synchronous closed-loop technology. Y1-Y2 axis is the independent motion axis of two sliders controlled by the numerial control system. Two magnetic scales are installed at both ends of the machine tool, which are used to determine the exact distance between the slide and the table, and the magnetic scale is connected to the table through the frame(c-frame), which minimizes the influence of column deformation on the position of the slide. The position data when the slider is running is immediately fed back to the numerical control system, which can measure and output the servo valve control signal S1-S2, control the output flow of the two electro-hydraulic servo valves, and synchronize the two cylinders, and this position measurement process is closed-loop control. The use of electro-hydraulic synchronization technology can make the machine have anti-bias load force and have eccentric load processing capablities.

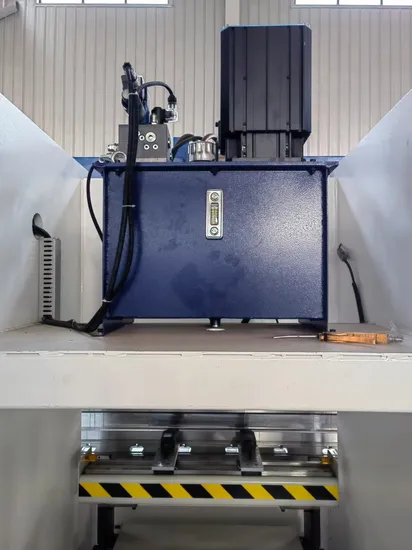

Hydraulic system
1.The proportional servo valve drive using German technology can obtain extremely high synchronous control accuracy.
2. The sealing ring is selected from Japan NOK, which has good sealing performance, reliable work and long. The pipe joint adopts the original American PARKER or EATON to ensure that the hydraulic system has no leakage. There is a clear and intuitive oil level height and temperature display. It adopts integrated design, compact structure, strong sealing performance and long life. The hydraulic system adopts precision filtration, and filtration accuracy is high. The hydraulic system has overload protection function.
The rear gear is driven by the servo motor through the synchronous belt synchronous wheel to the drive the ball screw to drive the rear gear material, and is carried by four linear guide rails, which has the characteristics of high repeated positioning accuracy, reliable structure, fast positioning speed, low noise and vibration, and high bearing capacity.
The standard R-axis lifting has a high advantage when bending complex workpieces, and transmission part is shielded by a safety cover, which can be used in one feel swoop.(the blocking system is an exclusive patented technology), and the large tonnage is matched with a series of heavy-duty materials.
This machine is suitable for aircraft, shipbuilding, automobiles, electrical appliances and other factories, construction, decoration and other industries and lamp pole production. High production efficiency. When bending sheets of different thicknesses, only need to select the "V" groove under die with different opening sizes, generally the selected opening is 6~10 times of the plate thickness. For example, when bending a 6mm plate, you can choose a 36-60mm groove
The machine tool is mainly composed of frame, slider, backstop system, hydraulic system, control system and mold.
The original design of Jingchuang laser technology Co., Ltd.(Jattra group) adopts the finite element analysis method to ensure the strength, rigidity and safety of the machine;
Beautiful appearance, exquisite workmanship, the pursuit of details, whether it is machining, welding, assembly of parts, or painting, labels, etc. strive for perfection;
The high-quality steel plate welded structure is adopted, tempered to relieve stress, and the frame is thick, rigid and shock-absorbing. The structural parts are sanded to remove rust and sprayed with anti-rust paint.
The column, upper working slider and lower working table of the machine tool are finished by the world's top large-scale CNC floor boring and milling machine, which ensures the parallelism, perpendicularity and parallelism of each installation surface;
Upward bending design, stable work, convenient operation and safety.
Standard Facilities:
1. ESTUN E21 NC control + Frequency inverter
2.Front support arms
3. Motorized stroke adjustment
4. T slot on both front side and back side of the worktable
5. OMAGE Hydraulic valve
6. SUNNY hydraulic pump
7. Siemens famous brand motor
8. Siemens Electric parts
9. Machine power is turn-off when the electric cabinet door opened
10. Upper clamps with Anti Wedges
11. Hydraulic and Electrical overload protection
12. Side safety guard and Full height back safety guard
13. With standard Top punch and Bottom Die
14. Back gauge beam is made of profile steel and liner guide
15. Back gauge is supported with ball screw and polished steel round bar with 0,05mm accuracy
2. Estun E21 NC Press Brake Control system:
1. Monochrome LCD Box Panel.
2. Integral factor programmable freely
3. Automatic positioning control
5.Internal time relay
6.Ram stroke counter
3. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement
4. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
5. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
6. Main features
1. The whole machine is in sheet plate welded structure, which internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
2. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsion bar, stable and reliable operation, as well as high precision.
3. Electrical adjustment and manual fine-tuning adjustment mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use.
4. Upper clamp is fitted with compensation device.
5. Worktable mechanical compensation or hydraulic compensation device is optional. Factory and exhibtion
