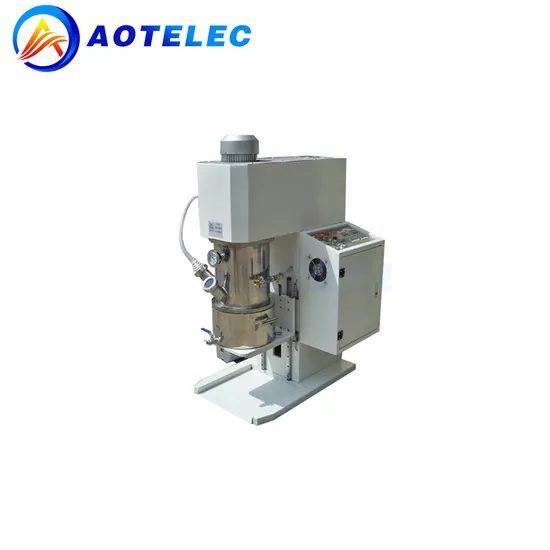

5L Lab Battery Slurry Stirrer Planetary Vacuum Mixer

Product Description

Product Description
Description
This machine is a high-efficiency equipment that integrates vacuum mixing and dispersion. It is suitable for the battery cathode and anode electrode slurry mixing process in the lithium battery experiment process.Also it is widely used in solder paste, silica gel, chemical industry, etc.
Features
Using industry-leading soft sealing technology, can maintain -0.098Mpa state for more than 24 hours;
Supported by double precision guide columns, the cylinder pushes the mixing tank to open and close, humanized design, precise and efficient;
The tank body is made of high-quality 304 stainless steel, after being processed by a large horizontal lathe, and then polished by a precision automatic polishing machine to ensure high precision;
The double-dispersed blade design makes the material tumbling up and down and around, so that the slurry is mixed quickly and evenly;
The stirring motor adopts gearbox frequency conversion adjustment, and different speeds and torques can be selected according to different processes and different viscosities;
Technical Parameter

Model	Planetary Vacuum Mixer AOT-PVM-5L
Power	3.5KW, 220V AC
The rotation speed	0-1400 rpm/min
Speed regulation	by frequency converter
Revolution speed	0-70 rpm/min
Effective volume	5L
Designed volume	9L
tank opening and closing method	geared motor driven irrigation and lifting, with water jacket.
Inside dimensions of tank	Φ260mm*180mm
Timing function	Time can be set arbitrarily 0-99 (H) set time
Other	c) To stop the operation automatically and maintain the vacuum state d) With a mechanical vacuum meter on it
Dimension	About 1300mm*1100mm*700mm
Net Weight	About 350kg

Company Profile
Xiamen AOT Battery Equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
Certifications
The products produced by the company have obtained anumber of certificates
Exhibition
AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.
Cooperative Brand
Packaging & Shipping
FAQ
Q1:How long do you need to prepare my goods?
A:3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
Q2:Can we have our logo or company name to be printed on products or package?
A:Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
Q3:How can I install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
Q4:How to get technical support after purchasing?
A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
Q5:What's the warranty for the items?
A: We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately. Warranty for equipment is 1 or 2 year (12 or 24 months depends on the type of products), If the equipment parts are damaged due to non-human factors within one year, we will provide replacement parts free of charge.
